Touch Thermostats (TC model)
Connected control at your Pelican thermostat or online.
In-Room Climate Control
Connected control at your Pelican thermostat or online.

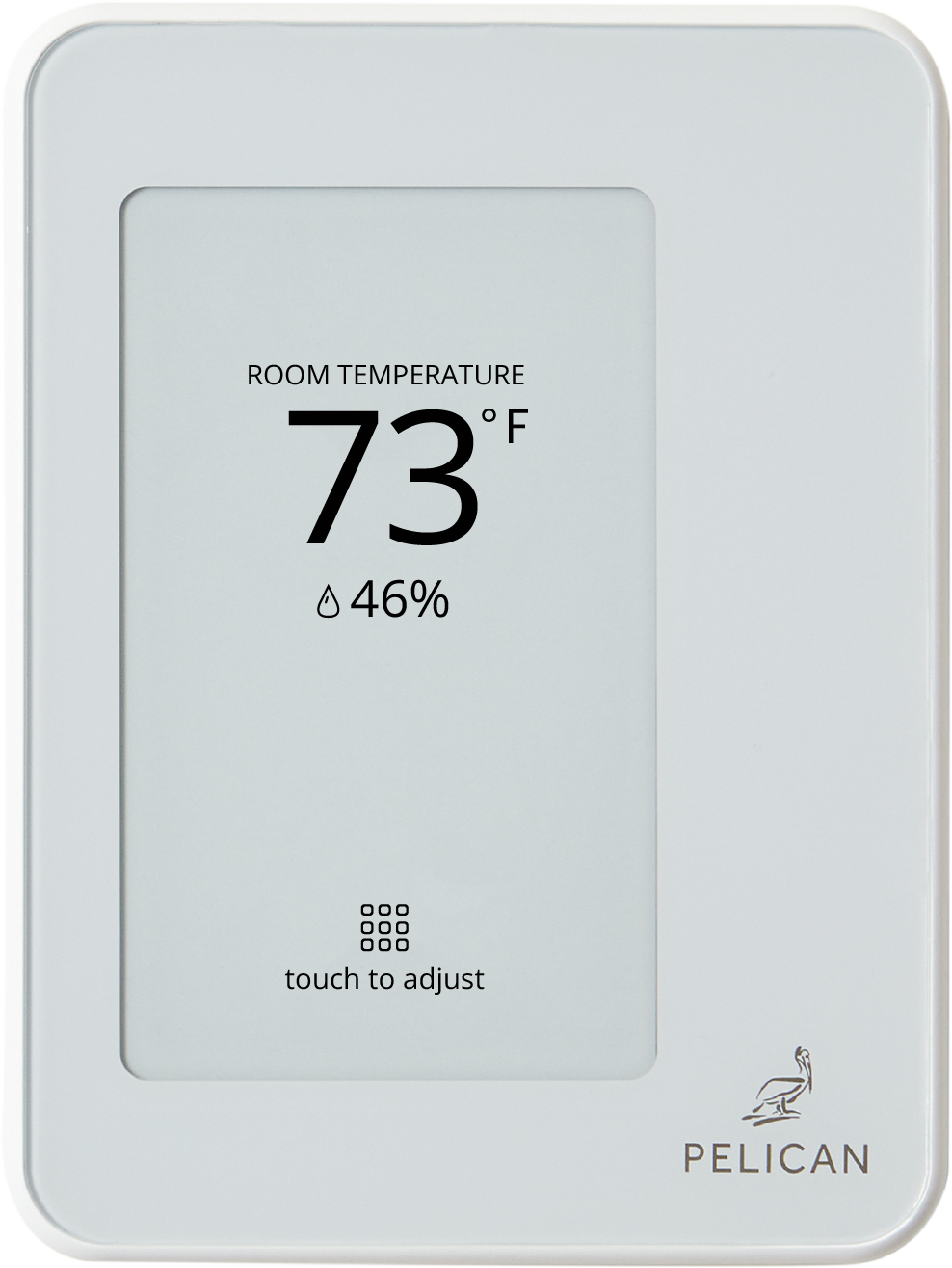

Commercial Connected Thermostat
TC Series
The Pelican thermostats are designed specifically to integrate flawlessly into your Pelican solution. Making climate control effortless at the thermostat or online.
Intuitive Control. Anywhere, Anytime.

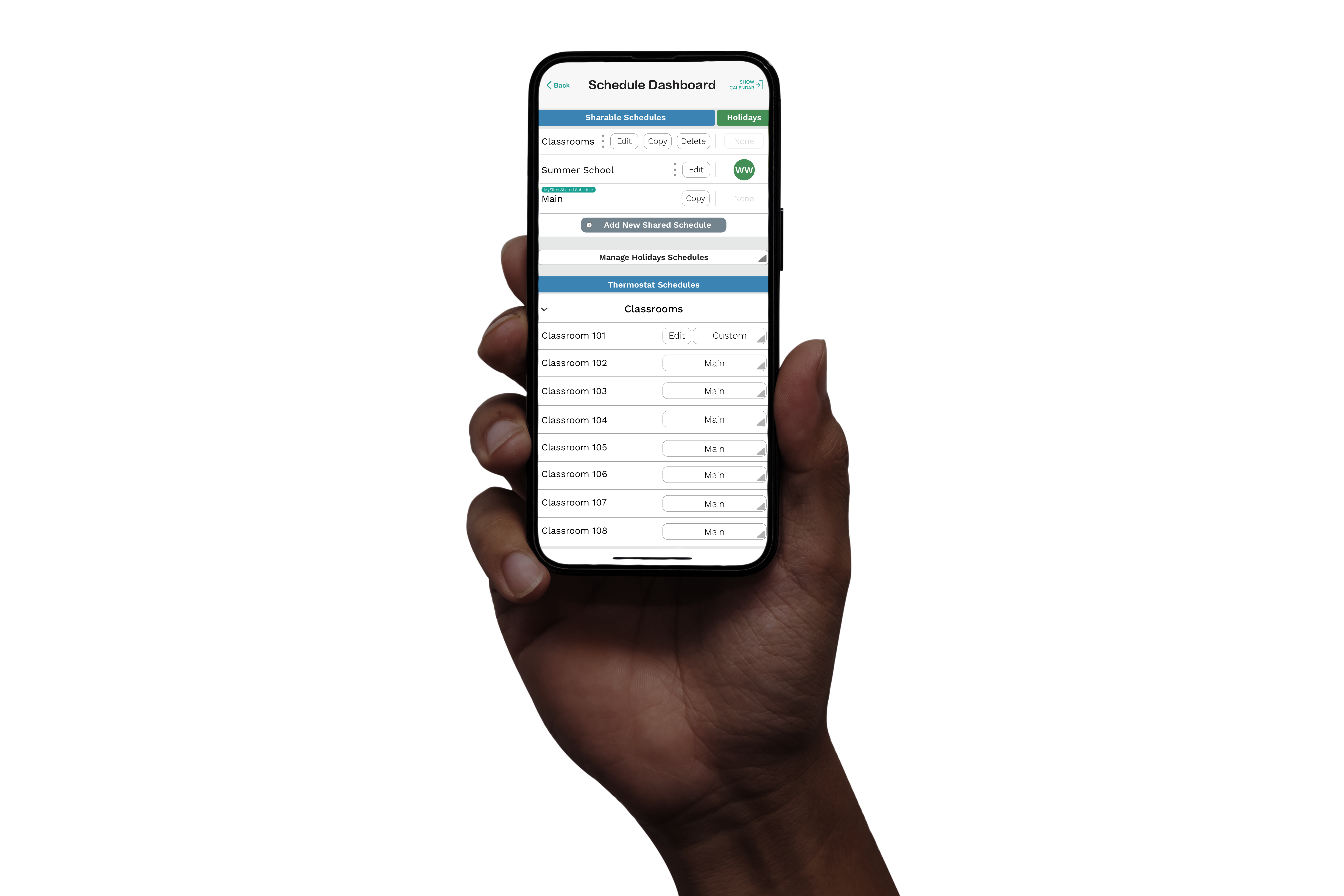

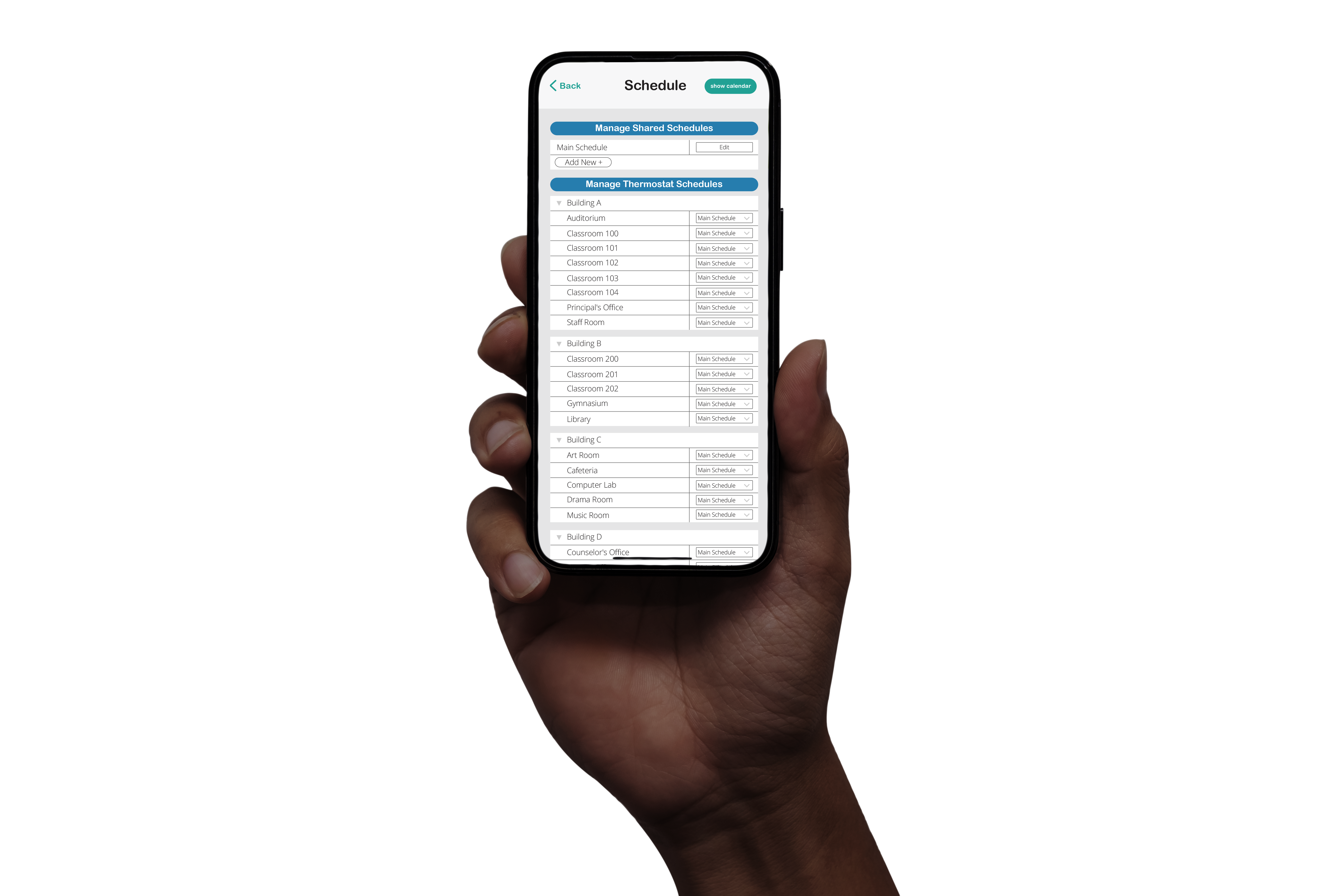

Optimized Scheduling
Our scheduling system gives you full control over optimal temperature adjustments while still giving room occupants limited flexibility within your defined set-point ranges.
Web Connected

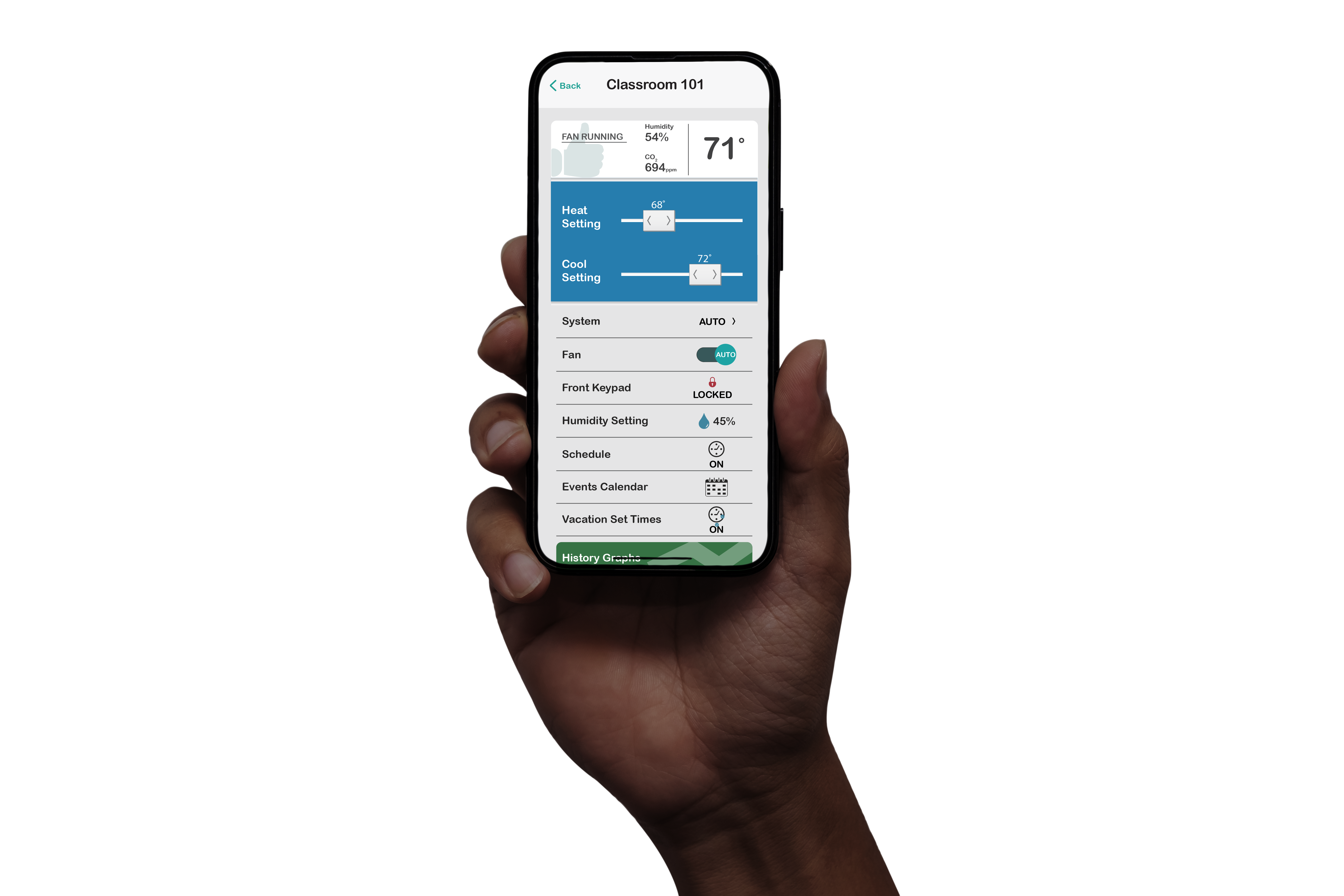

The Pelican Connect web-app allows you to make adjustments in an instant from anywhere.
Real-time data is continuously pushed to the Pelican cloud for historical tracking and fast issue detection. Keeping you updated at all times on site and online.

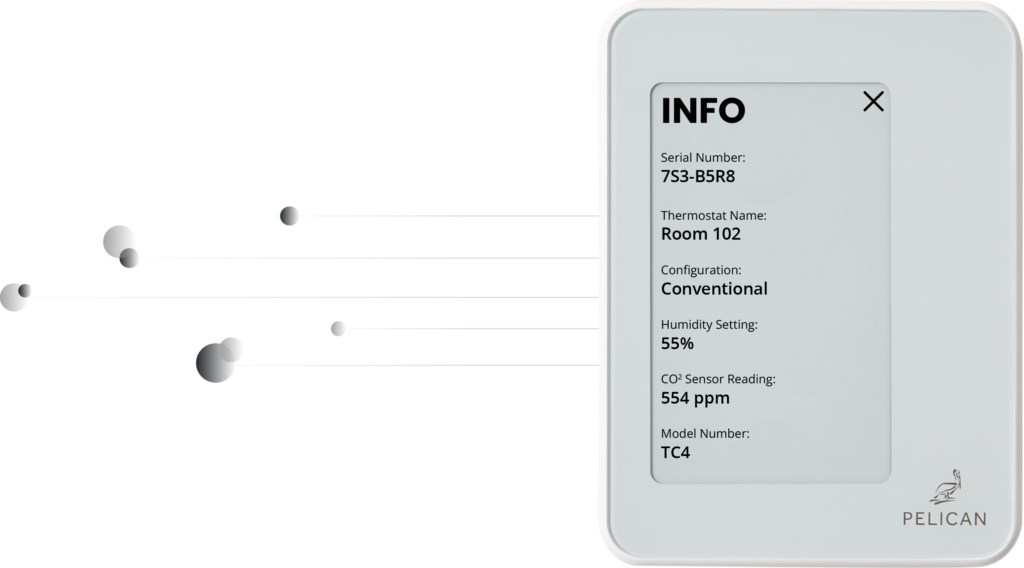

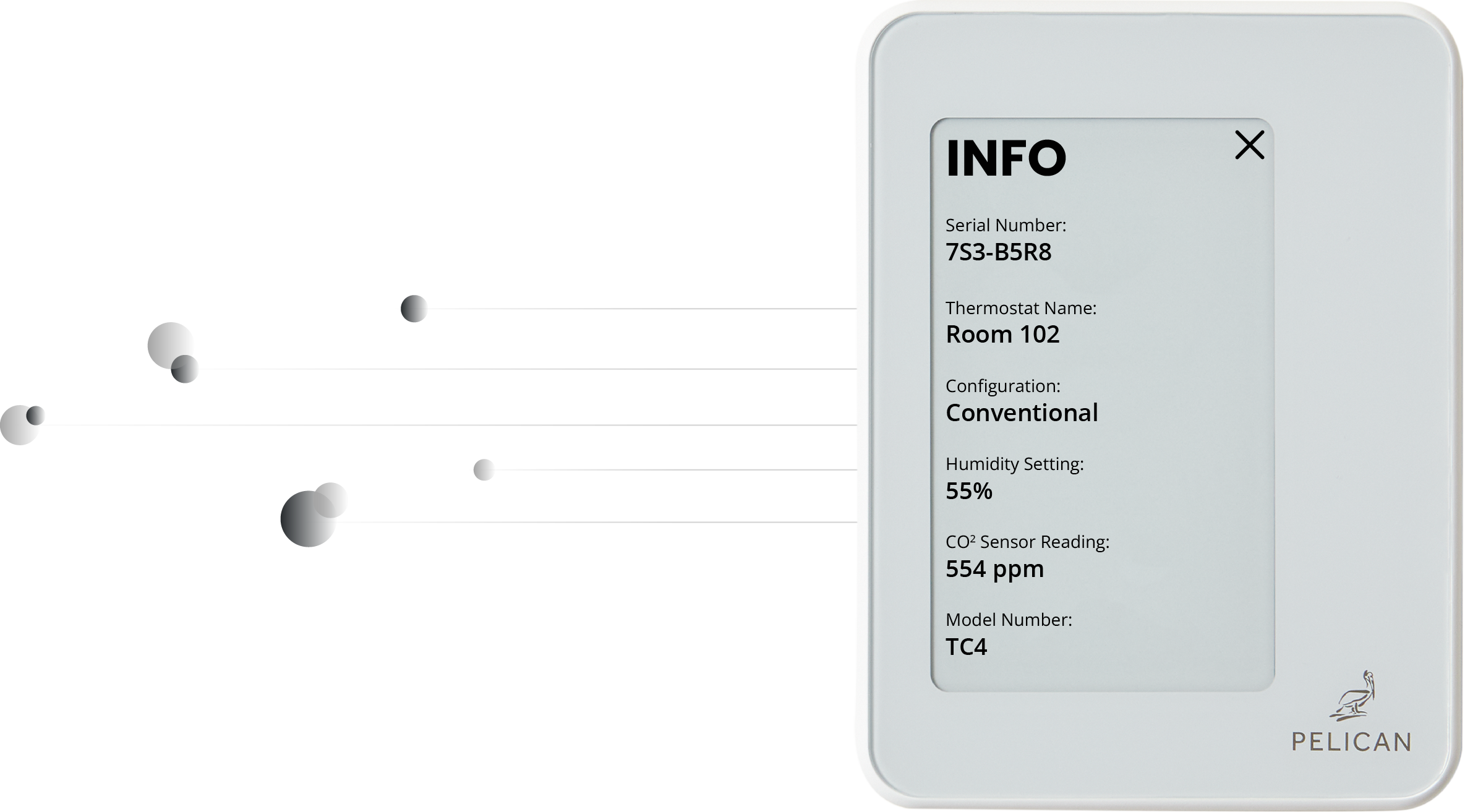

View key details and active settings, like configuration, humidity,* CO₂ readings**, and active alarms, all on screen.
- Only availible on the TC2 or TC4 thermostats. ** Only availible on the TC3 or TC4 thermostats.
Real-Time Data. Instant Visibility.
Real-time data is continuously pushed to the Pelican cloud for historical tracking and fast issue detection. Keeping you updated at all times on site and online. View key details and active settings, like configuration, humidity,* CO₂ readings**, and active alarms, all on screen.

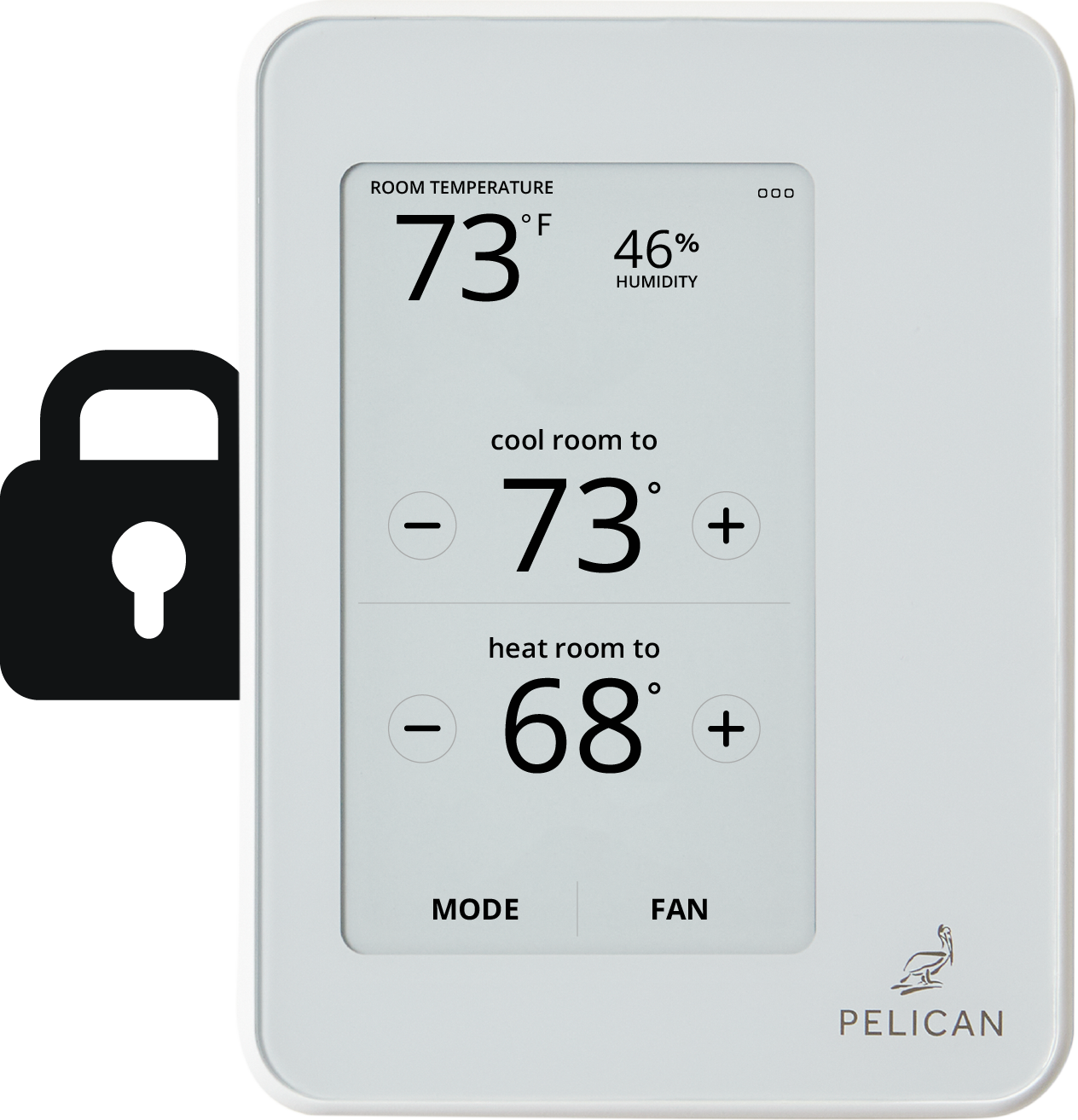

The Pelican Connect web-app gives you full control to lock your thermostat manually or by schedule, so only authorized users can make changes or hide all controls entirely for a descreet display with the minimal option.
If you are looking to give users limited access, you can set it to temperature only to hide the Mode or Fan buttons to still allow occupants access to adjust the temperature within your defined ranges without fully locking the thermostat.
Default (Within Set Ranges)
Set Points Only

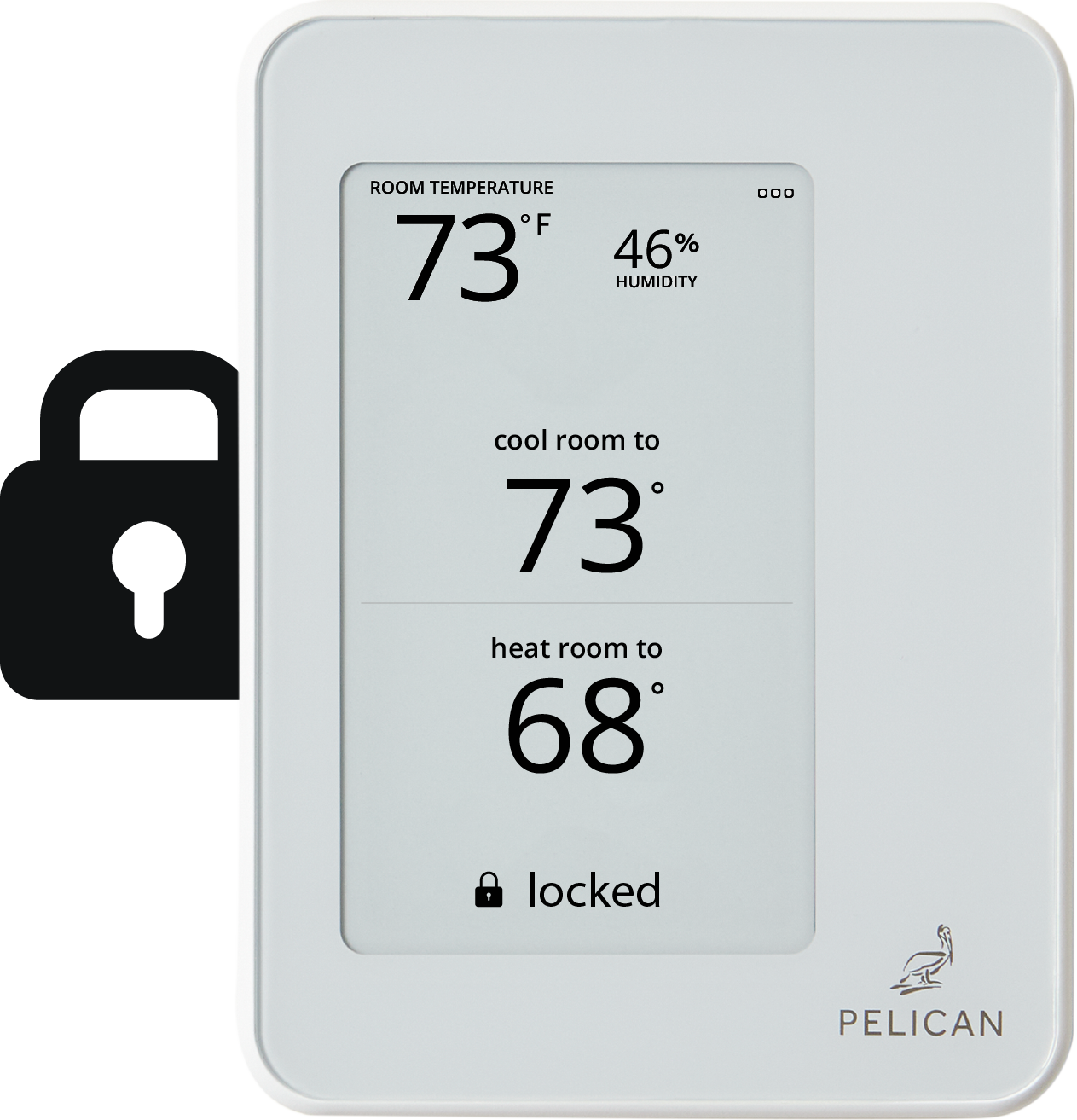

Locked

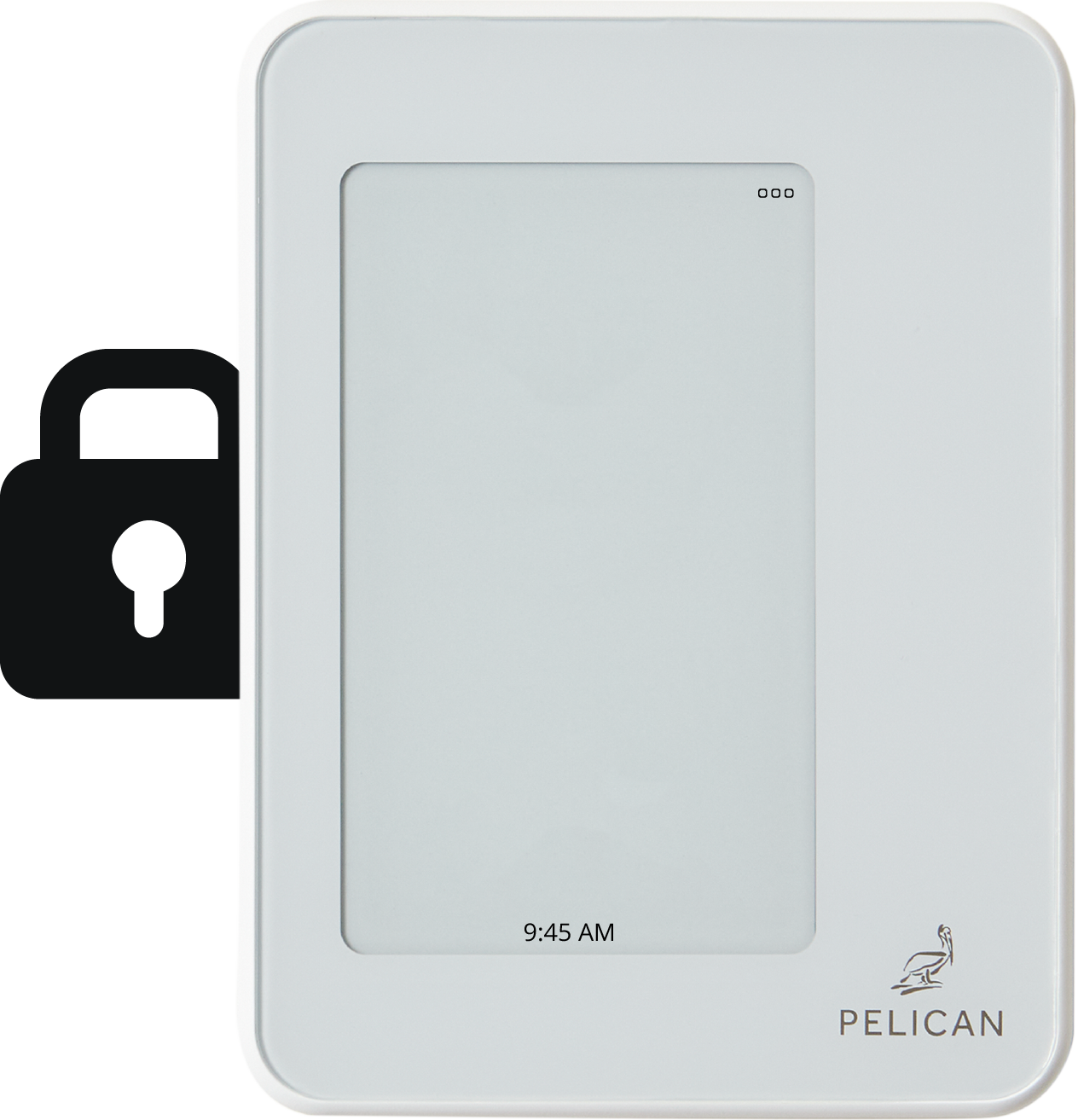

Minimal
Full Control. Customized Access.
The Pelican Connect web-app gives you full control to lock your thermostat manually or by schedule, so only authorized users can make changes or hide all controls entirely for a descreet display with the minimal option. If you are looking to give users limited access, you can set it to temperature set points only to hide the Mode or Fan buttons to still allow occupants access to adjust the temperature within your defined ranges without fully locking the thermostat.
Intergrated Monitoring. Automatic Optimization.
CO₂ Ventilation Optimization
Available on the TC3 model
When CO₂ levels rise, Pelican sends alerts through the web app and, optionally, displays them on the thermostat. The smart system then increases ventilation automatically and when paired with a Pelican economizer controller, adjusts the outside air damper to bring in fresh air.
Humidity Comfort Optimization
Available on the TC2 model
CO₂ & Humidity Optimization
CO₂ monitoring and humidity monitoring capabilities keep you fully informed at the thermostat or online. The Pelican system keeps the CO₂ and humidity levels optimized. Smart adjustments work behind the scenes to keep your site’s climate healthy, balanced, and comfortable without manual intervention.

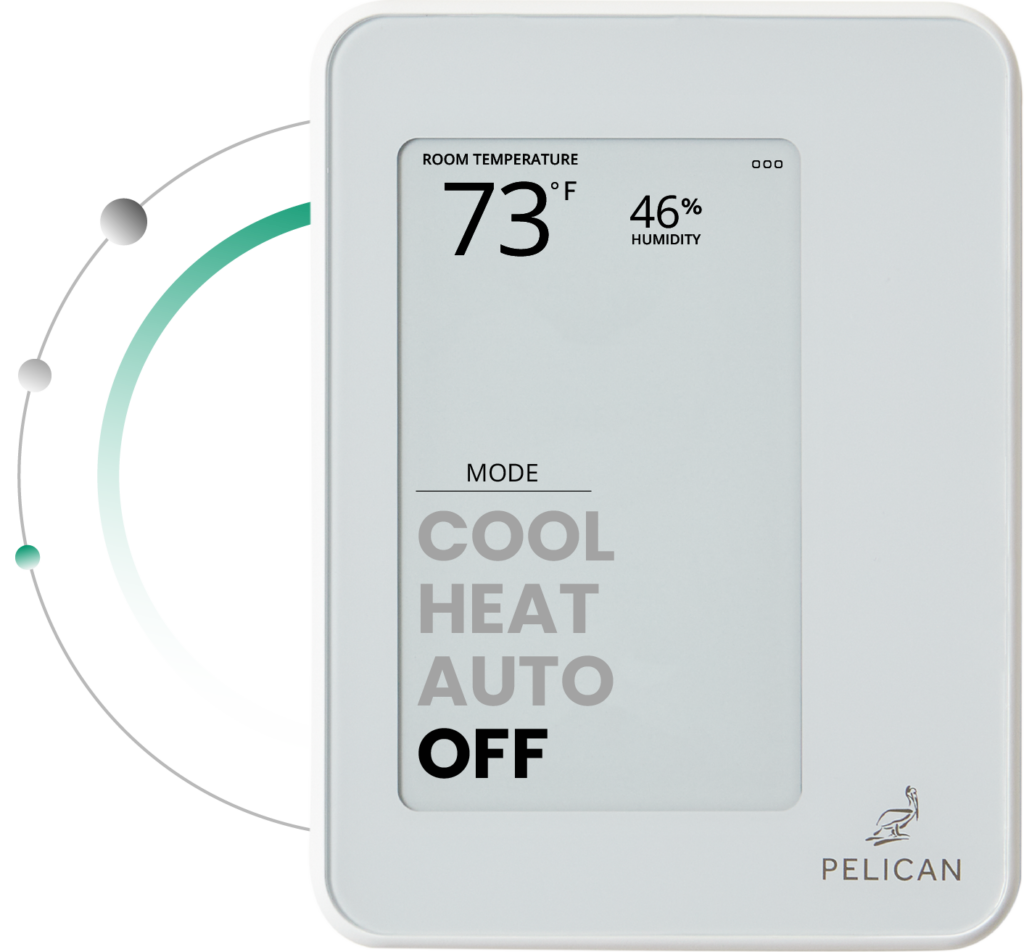

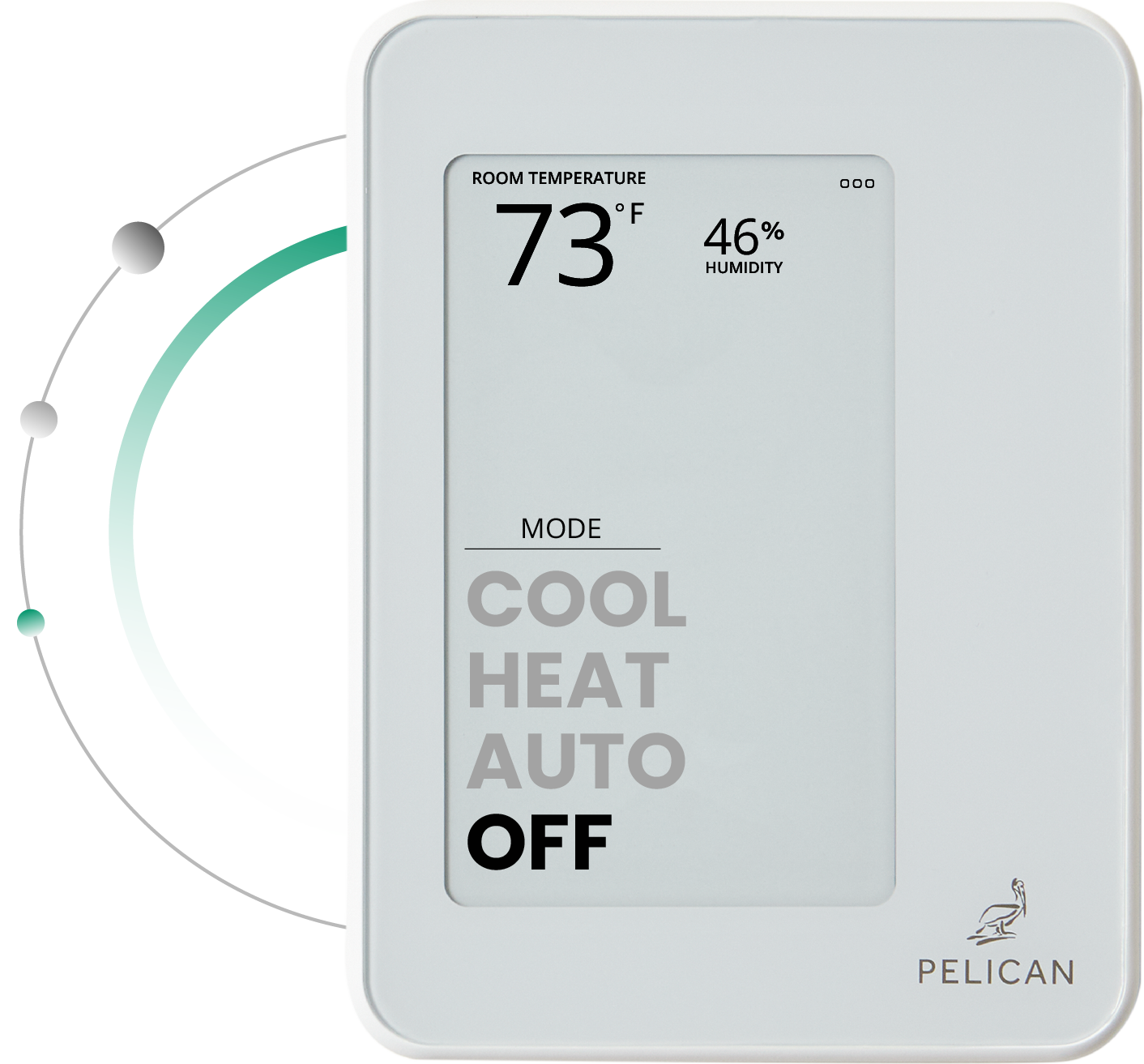

Always Adapting for Comfort
No matter the mode, The Pelican ecosystem automatically manages everything behind the scenes: responding to each thermostat’s demand and coordinating valves, fans, stages, and plant systems to deliver consistent, reliable comfort. When set to Off, the system automatically purges residual heating or cooling load, then safely powers down equipment to avoid waste and capture the full energy-saving benefit.

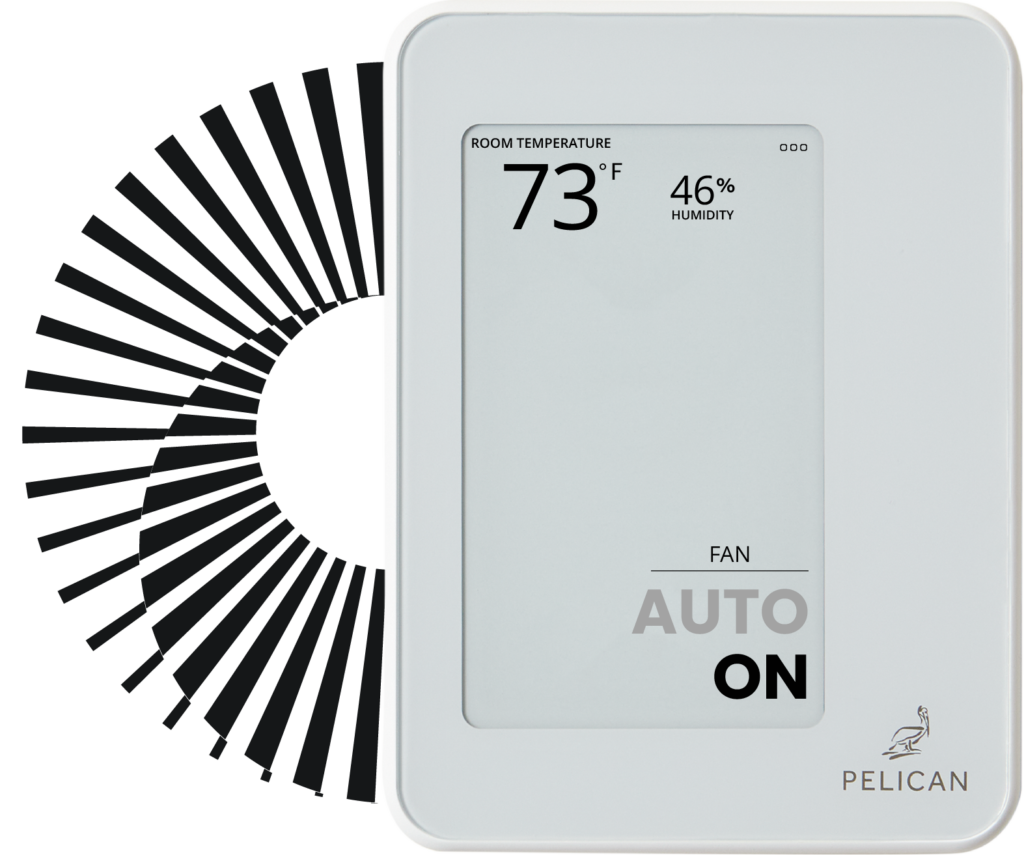

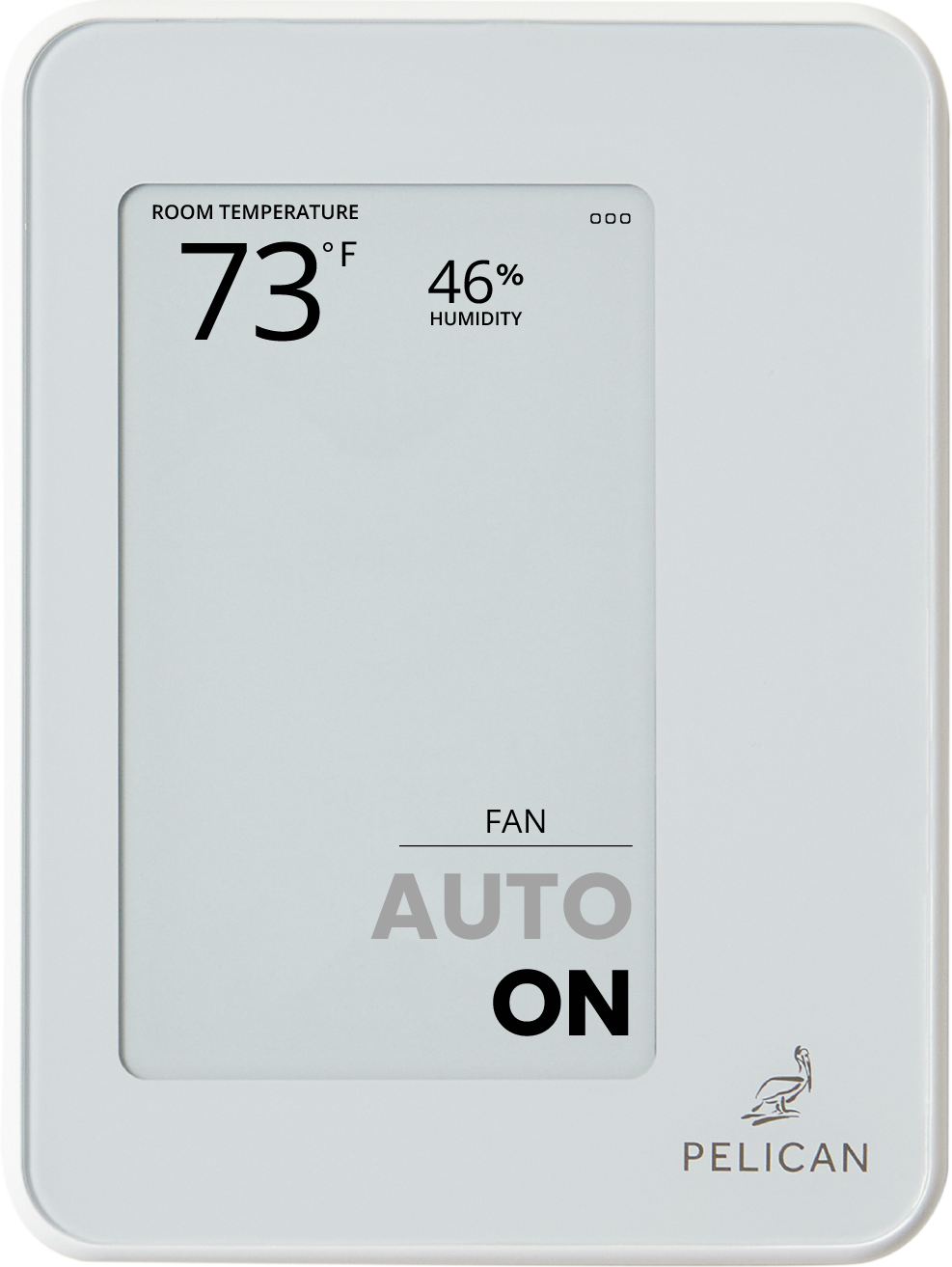

Beyond Simple Fan Control
At the thermostat, users can choose betwee Auto and On for basic fan control. Behind the scenes, the Pelican system ensures proper ventilation by guaranteeing minimum fan run-time and maintaining the correct fan speeds. And when connected to a Pelican Economizer Controller, the system also adjusts the outside air damper automatically to meet your ventilation needs.

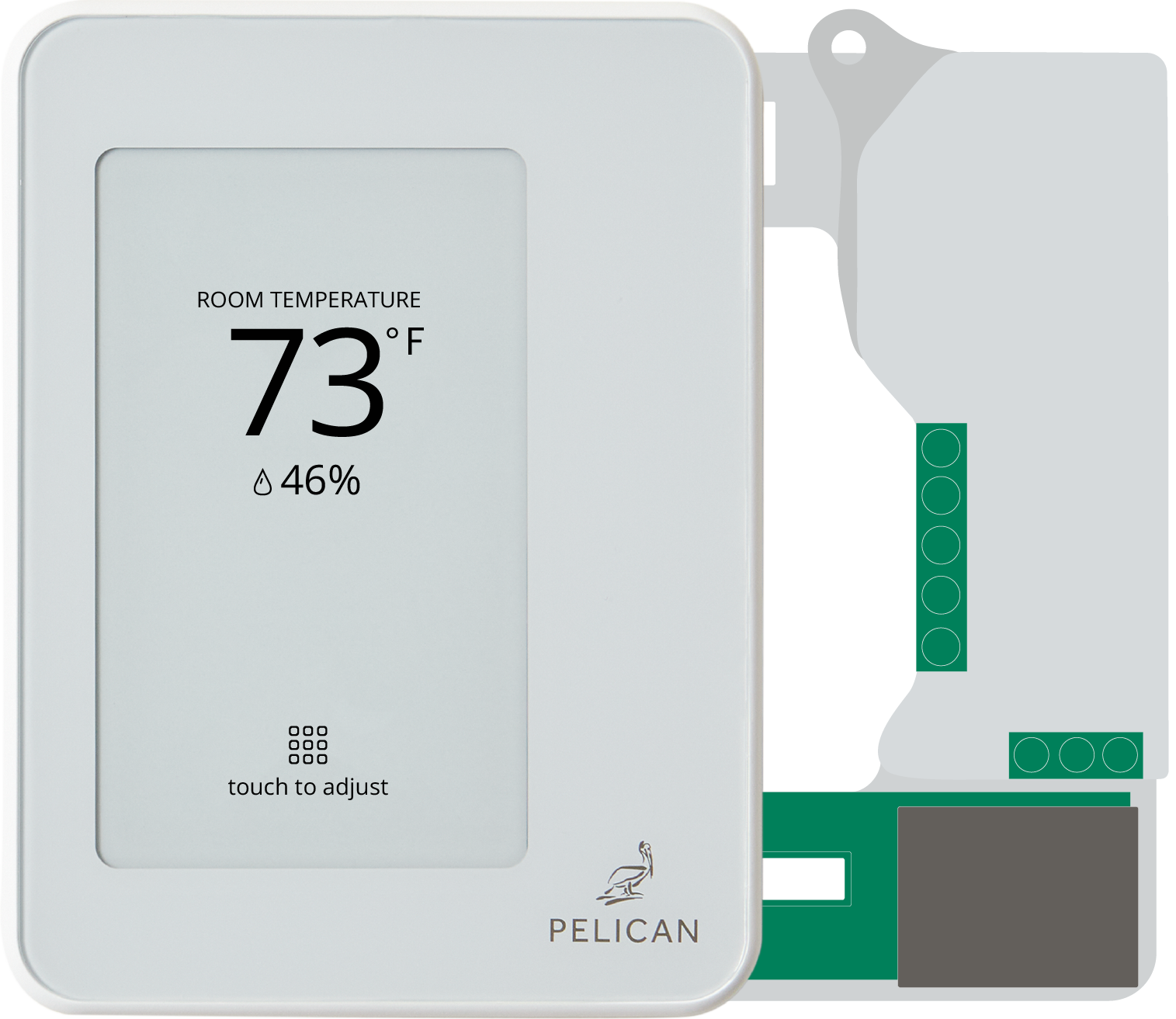

Intergration Made Effortless
Compatible with conventional, heat pump, multi-zone damper, fan coil, hot water, chilled water systems—and more. Pelican’s innovative 3-wire retrofit module makes replacement simple, turning outdated climate systems into modern, connected controls.

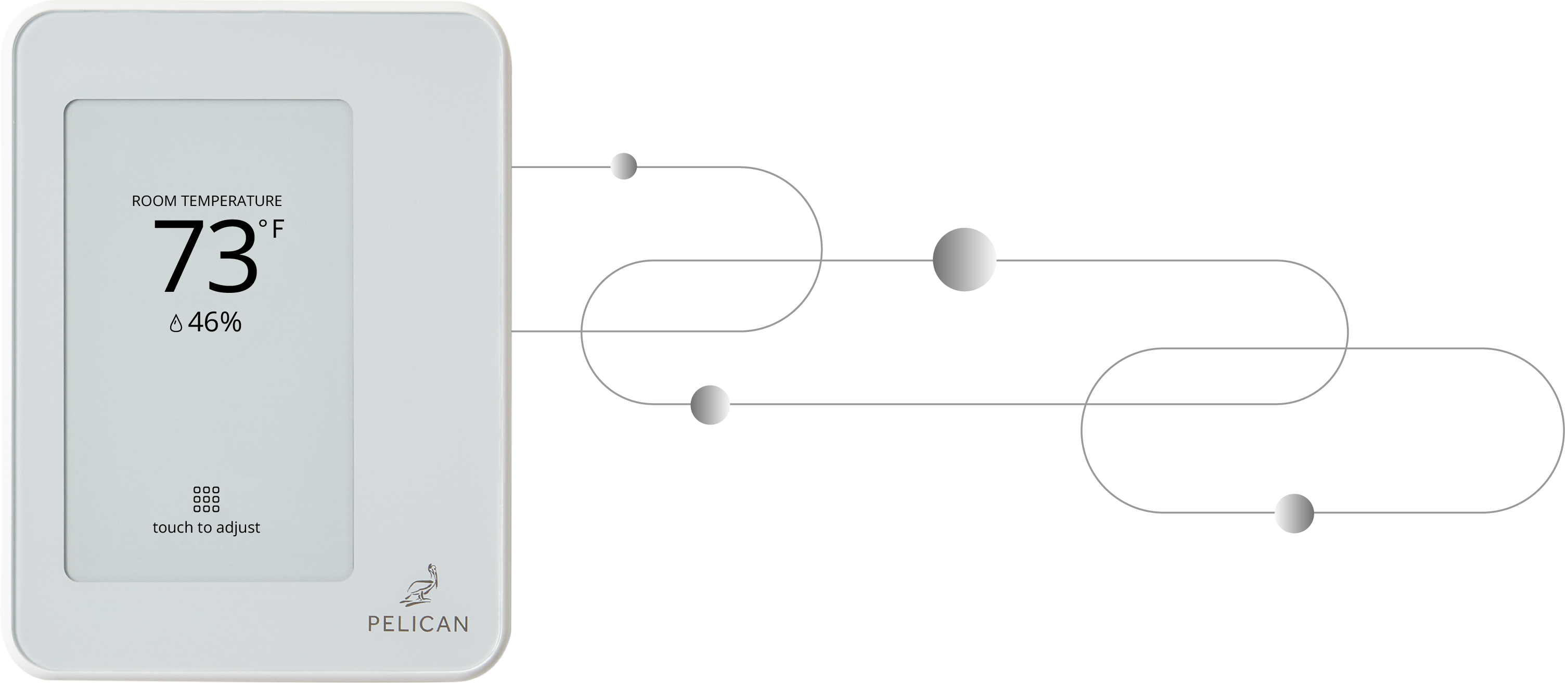

Connected Climate. Expanded Capabilities.
The Pelican solution goes far beyond the intuitive wall-mounted display. Our system’s capabilities extend to a range of controllers and accessories designed to handle complex and unique climate control applications seamlessly and intelligently. Our controllers integrate seamlessly with Pelican thermostats and the full Pelican climate control ecosystem, giving you the flexibility to choose the smart features that work best for you and your business based on expert recommendations.

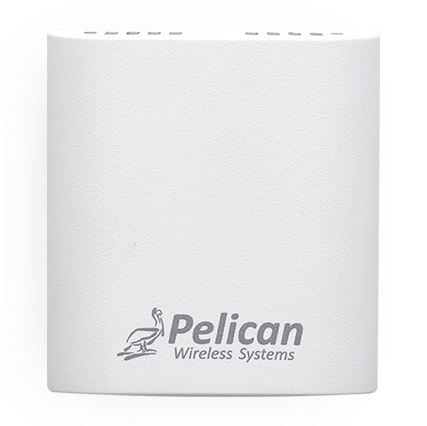

Wired External Sensor: TA1
This multi-faceted device flexibly measures space temperature, supply temperature, or other essential temperature points to support accurate system control and monitoring.
Advanced Functions:
Monitor and record the discharge air temperature of your HVAC equipment or from a VAV box.
Remote Room Temperature Sensor
Mount the TA1 in a secondary location and weight/average the temperature between its primary thermostat and the TA1 location.
Occupancy Sensor Input
Wire a third-party occupancy sensor’s dry-contact output into the TA1 to utilize occupied/unoccupied thermostat temperature setbacks.
Dry-Contact Input Notification
Pull in a third-party dry-contact input to generate a notification on your Pelican App. Notifications are based on dry-contact state and can be tied into if heating, cooling, or fan are active. Naming of notification are defined in the App.
Stand Alone External Temperature Sensor
Sometimes you need to monitor a water temperature or the outdoor air temperature. Although a TA1 is wired to a thermostat, it can be configured as a stand-alone temperature sensor in the Pelican App.

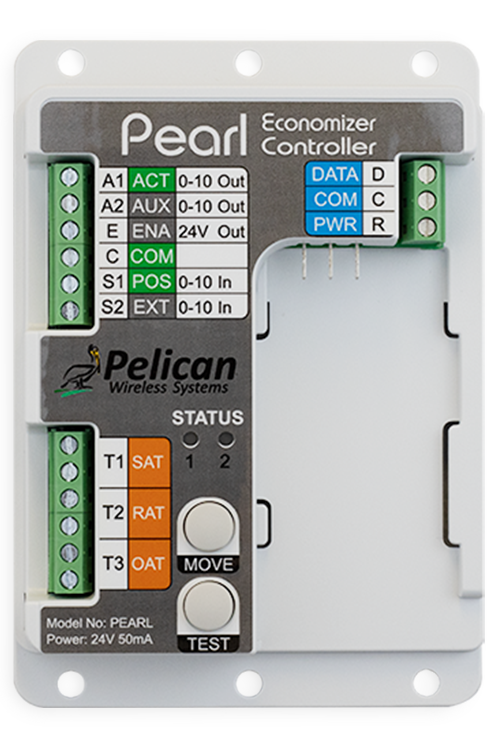

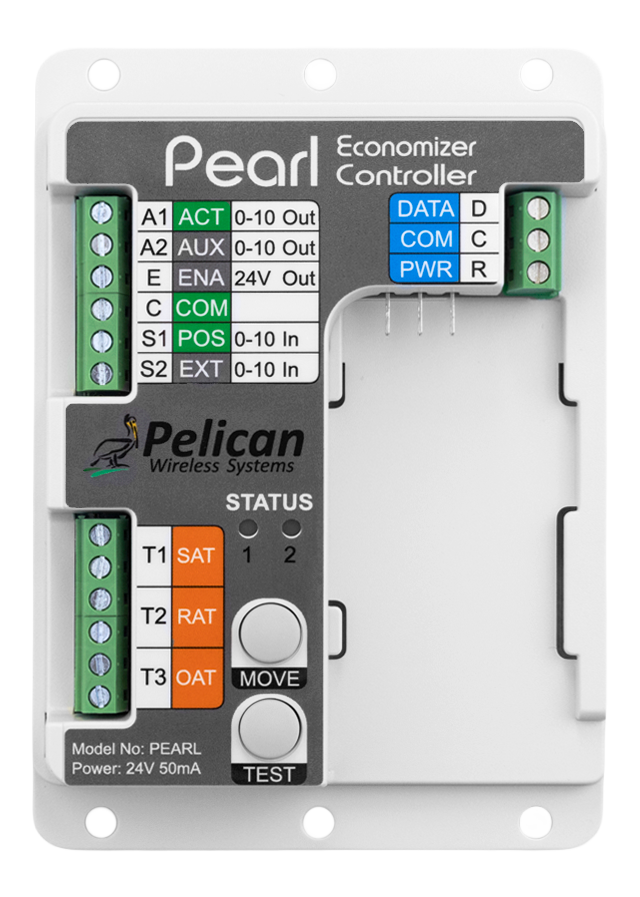

Advanced Rooftop Controller: PEARL
This device wires directly to a Pelican thermostat to provide intelligent sequencing for advanced equipment and economizer control, ensuring tuned comfort, proper ventilation, and peak energy performance.
Real-Time Demand Ventilation
When paired with a CO₂ Pelican thermostat**, the PEARL continuously monitors occupancy and automatically adjusts ventilation based on real-time demand. It also monitors space, supply, and outside temperatures, and damper position.
**Only available with a TC3 or TC4 connected
The PEARL can provide full modulating cooling management to a target discharge air temperature. The target auto-resets based on how much cooling demand the Pelican TC thermostat indicates the room has.
Modulating Heating Management
The PEARL can provide full modulating heating management to a target discharge air temperature. The target auto-resets based on how much cooling demand the Pelican TC thermostat indicates the room has.
Advanced Equipment Failure Warning Notifications
Immediately stay up to date on your equipment with warning notifications on your Pelican Connect App for out-of-range supply temperature, stuck dampers and excess outdoor air.
Enhanced Historical Data Tracking
View temperatures (space, supply, return, outside), damper position, HVAC calls, and CO₂ levels** live online. Access up to two years of trend data through interactive graph

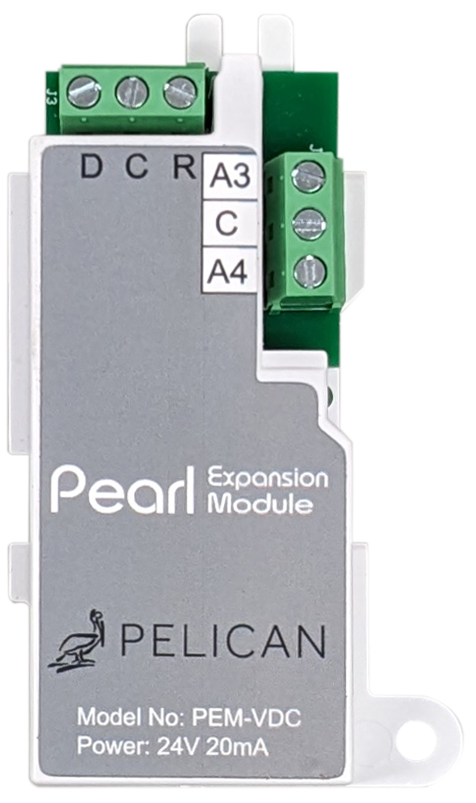

PEARL Expansion Module: PEM-VDC
This accessory adds two additional modulating outputs to the PEARL, enabling precise heating and cooling modulation to achieve a target discharge air temperature. The PEARL Expansion Module is an optional accessory is designed to expand functionality only when required for specific HVAC equipment, keeping costs down for our customers who do not require the additional outputs.

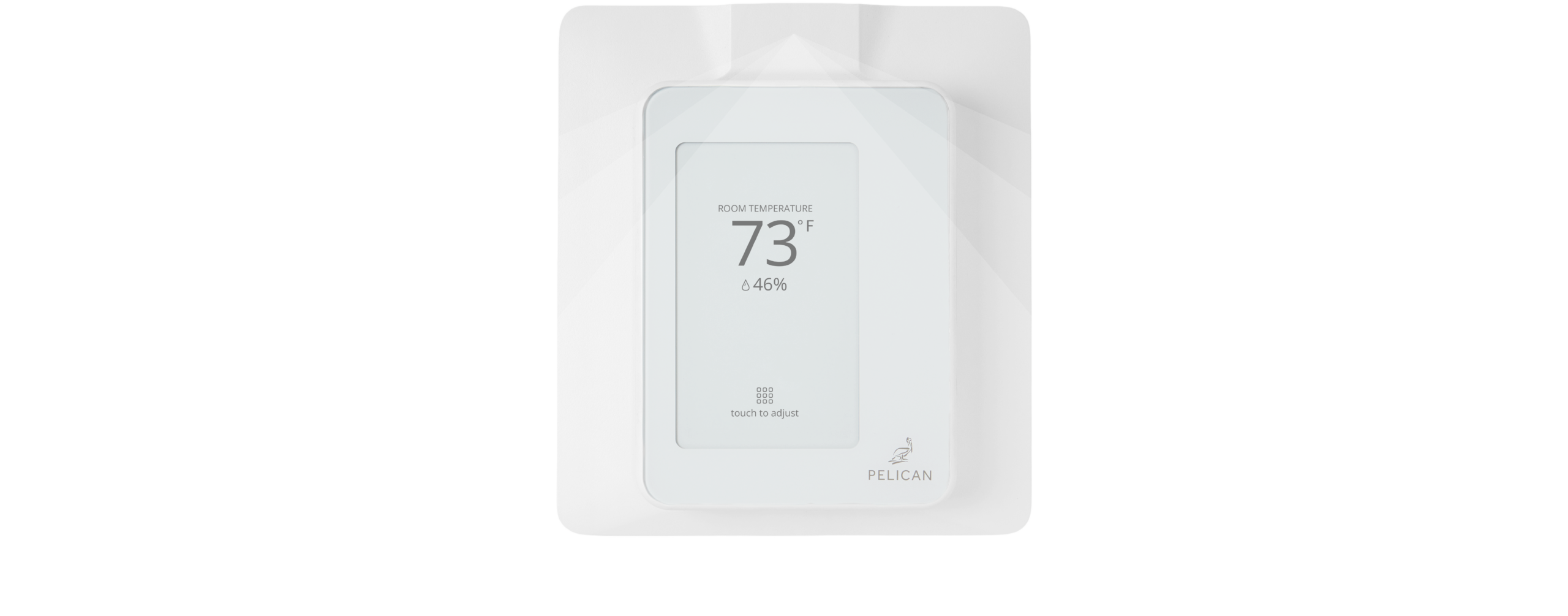

Human Presence Detection: Pelican Sense
Pelican Sense is a human presence sensor powered by advanced mmWAVE radar technology embedded in a tamper-resistant thermostat vanity plate. Unlike traditional sensors that miss small movements and stationary occupants, Pelican Sense can detect subtle motion such as breathing and heartbeats, ensuring accurate occupancy awareness without compromising privacy.
Pelican Sense operates reliably in challenging environments where traditional occupancy sensors struggle. It is unaffected by temperature variations, direct sunlight, shadows, or changes in ambient lighting. The sensor performs consistently in both brightly lit spaces and complete darkness.
Motion Speed Detection
Using advanced 24 GHz FMCW radar technology, Pelican Sense can detect motion and determine movement speed, enabling more intelligent occupancy detection and activity monitoring.
Extreme Accuracy
Pelican Sense detects micro-movements associated with human presence, including breathing, subtle body movements, and other minute motions. The sensor can determine occupant distance and distinguish between stationary and moving targets, providing highly accurate occupancy detection.
Automated Setbacks
When a space is unoccupied, Pelican Sense automatically initiates configurable temperature setbacks to reduce energy consumption. Occupied and unoccupied set points can be customized based on application requirements and time-of-day schedules.
Adjustable Occupancy Timing
Occupancy and vacancy timing parameters are fully configurable, allowing the system to balance occupant comfort with energy savings.
The Pelican solution goes far beyond the intuitive wall-mounted display. Our system’s capabilities extend to a range of controllers designed to handle complex and unique climate control applications seamlessly and intelligently. Our controllers integrate seamlessly with Pelican thermostats and the full Pelican climate control ecosystem, giving you the flexibility to choose the smart features that work best for you and your business based on expert recommendations.
Discharge Air Temerature Sensor
Heartbeat Detection
Breath Detection
Distance to Sensor
Stationary Detection
Movement Detection
Technical Specifications
TC1 Thermostat
TC2 Thermostat
TC3 Thermostat
TC4 Thermostat
Part Number:
TC1
TC2
TC3
TC4
Humidity Sensor:
Humidify setting: 10 - 80% RH
Dehumidify setting: 20 - 90 RH
CO₂ Sensor
400 - 2000 PPM detection range.
+/- 50 PPM accuracy @ 600 PPM
and 1000 PPM, auto-calibrating.
Relay Current Rating:
2.0A running (Y, Y2, W, W2, G)
1.0A running (Dh & Hu)
Operating Range:
-4°F to 122°F
5% to 90 % Relative Humidity
(non-condensing)
Temperature Deadband:
3°F setting, auto-adjusting to 5°F
Wireless Frequency:
2.4 GHz Mesh Networking
Wireless Standards:
IEEE 802.15.4
Operating Voltage Range:
23 - 30 VAC
Power:
24 VAC, 60 Hz, 105mA
FCC Compliance:
Class B part 15
Dimensions:
5.2 X 3.9 X 0.75 in
(132 X 99 X 19 mm)
Mounting:
Vertical Mount
Storage:
-20°F –160°F
Standard Features
Schedule
- Daily, 5-2, and 7 Day Occupied/Unoccupied Schedule.
- Up to 12 set times per day.
- Optimum Start.
- 365-day vacation calendar.
- Vacation mode button.
- Event calendar.
- Enforced fan circulation.
- Tamper proof security screw.
- Four minute short cycle timer.
- Temporary schedule override allowance.
- Schedulable keypad lockout.
- 365-day vacation calendar.
- Limit heat and cool set-point ranges.
- Auto-adjusting 5°F heat and cool dead-band.
- Analytics based cool and heat failure notification.
- Temperature safe range notification.
- Unable to find wireless network notification.
- Unable to connect to cloud server notification.
- Unreachable device notification.
- Utility event active notification.
- Daily, 5-2, and 7 Day Occupied/Unoccupied Schedule.
- Up to 12 set times per day.
- Optimum Start.
- 365-day vacation calendar.
- Vacation mode button.
- Event calendar.
- Enforced fan circulation.
- Tamper proof security screw.
- Four minute short cycle timer.
- Temporary schedule override allowance.
- Schedulable keypad lockout.
- 365-day vacation calendar.
- Limit heat and cool set-point ranges.
- Auto-adjusting 5°F heat and cool dead-band.
- Analytics based cool and heat failure notification.
- Temperature safe range notification.
- Unable to find wireless network notification.
- Unable to connect to cloud server notification.
- Unreachable device notification.
- Utility event active notification.
