Wireless PTAC Control (TCM1)
| Hospitality Solution: Wireless PTAC Controller

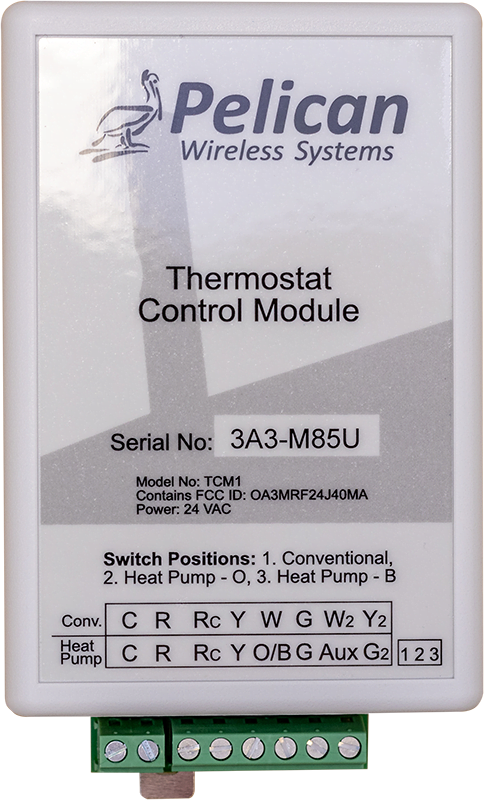

The Pelican Wireless PTAC Controller (TCM1)
| Wireless PTAC Controller

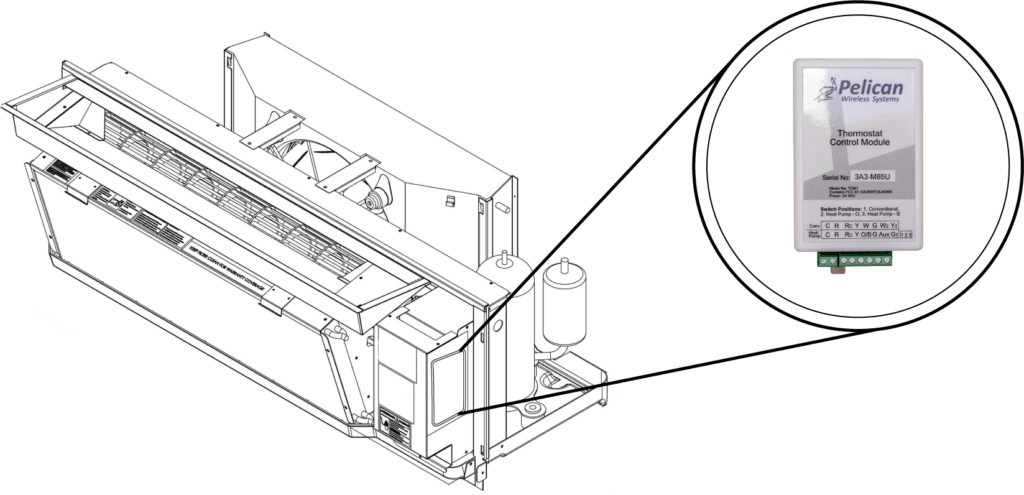

The TCM1 can be mounted inside a PTAC unit and, when combined with a Pelican RTI Series Remote Wireless Sensor, be used to maintain a hotel guest room’s temperature.
DESIGN
Compact
The small footprint of the TCM1 makes it easy to fit inside a PTAC unit.
MULTIPLE AVERAGING SENSORS
Up to 8 Per TCM1
Each TCM1 can communicate with up to 8 Pelican RT1 Series thermostats to average the temperature around the guest room.
WEB-APP CONNECTED
Virtual
Right from the Pelican Connect™ app you can view what your TCM1 and its associated RT1 Series Pelican remote wireless sensor.
| PTAC Applications
CONTROL:
24VAC Outputs
The TCM1 has five (5) 24VAC outputs used to control a PTAC unit.
SYSTEM SETTINGS:
Heat Pump or Conventional
The TCM1 has a toggle on the bottom that can be placed to sequence of conventional or heat pump (O)/(b) PTAC unit.
REMOTE SENSOR:
Wireless Communication

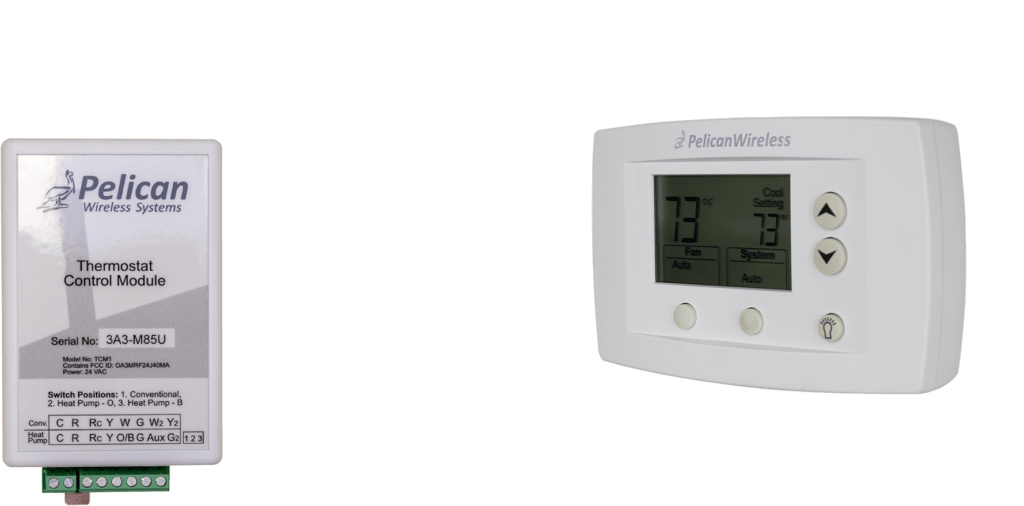

The TCM1 is paired with a wall mounted Pelican RT1 Series Wireless Remote Sensor. The RT1 detects the room temperature and sends heat, cool, fan requests to the TCM1 over the Pelican wireless network.

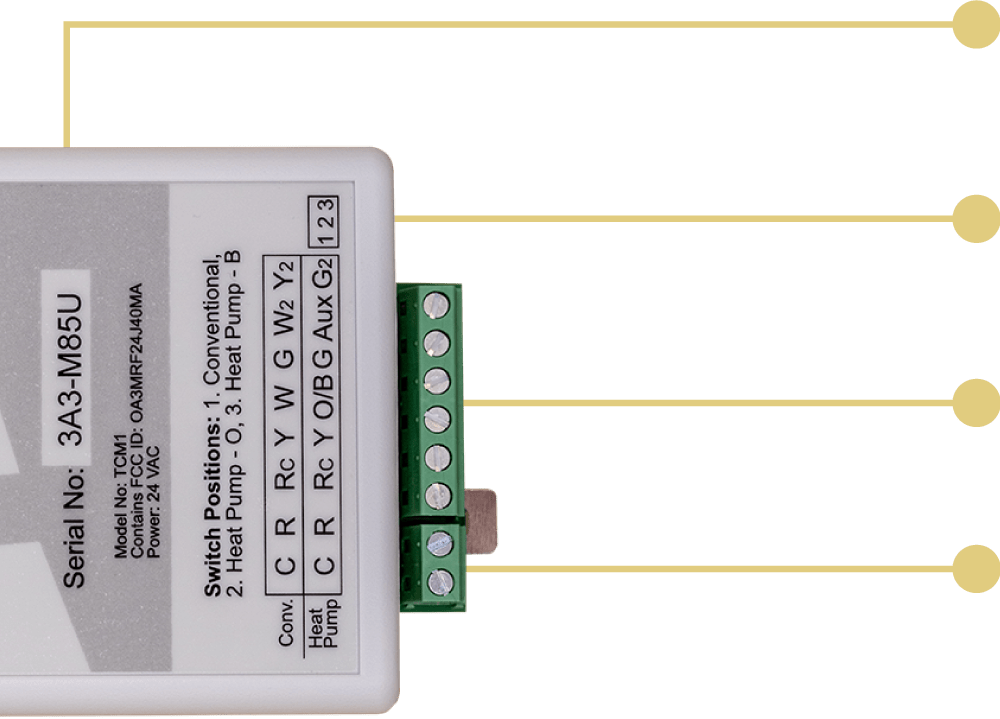

| TCM1Terminals
WIRELESS IDENTIFIER
Serial Number (XXX-XXXX)
A TCM1 is identified on your Pelican Connect™ App through a unique identifier. The TCM1 can be named according to the room it is installed and and then connect to its RT1 Series Remote Wireless Sensor through the app.
TOGGLE SWITCH
The toggle switch on the bottom of the TCM1 lets you select if it is controlling a Heat Pump (O) or (b) or a Conventional PTAC unit.
DIGITAL OUTPUTS
(Y, Y2, W, W2, G) HVAC Unit Control
The TCM1 will enable the equipment’s heating, cooling, and fan through standard 24VAC outputs.
POWER
24VAC
The TCM1 is powered by the PTAC’s internal 24VAC transformer.
| TechnicalSpecifications
COMPATIBILITY
Conventional HVAC Units Heat Pump HVAC Units 2-Pipe Fan Coil Units 4-Pipe Fan Coil Units
DIMENSIONS
in: 5.9x3.5x1.5 mm: 150x89x38
MOUNTING
Designed to be mounted on a flat surface.
24 VAC, 60 Hz, 50mA
OPERATING VOLTAGE RANGE
23 - 30 VAC
OPERATING RANGE
-4°F to 122°F 5 to 90 % Relative Humidity (non-condensing)
STORAGE
-20°F to 160°F
SYSTEM PROTECTION
4-minute compressor short cycle timer Temporary override Trend data with monitoring Auxiliary/Emergency heat algorithm
24 VAC, 60 Hz, 105mA
in: 5.9 x 3.5 x 1.5 mm: 150 x 89 x 38
