Traditional Thermostats (TS model)
Shaping The Future:
Effective March 31, 2024, production of the TS thermostat concluded, finalizing the transition to our already successful and forward-thinking TC line of modern thermostats.
What does "end-of-production" mean?
Next Gen Unleashed.

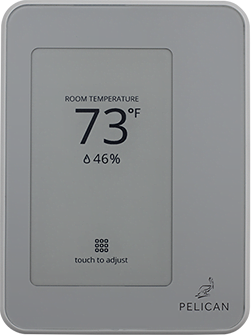

TC Series: Modern Commercial Thermostat
Pelican Thermostat
(production concluded on 3/31/2024)

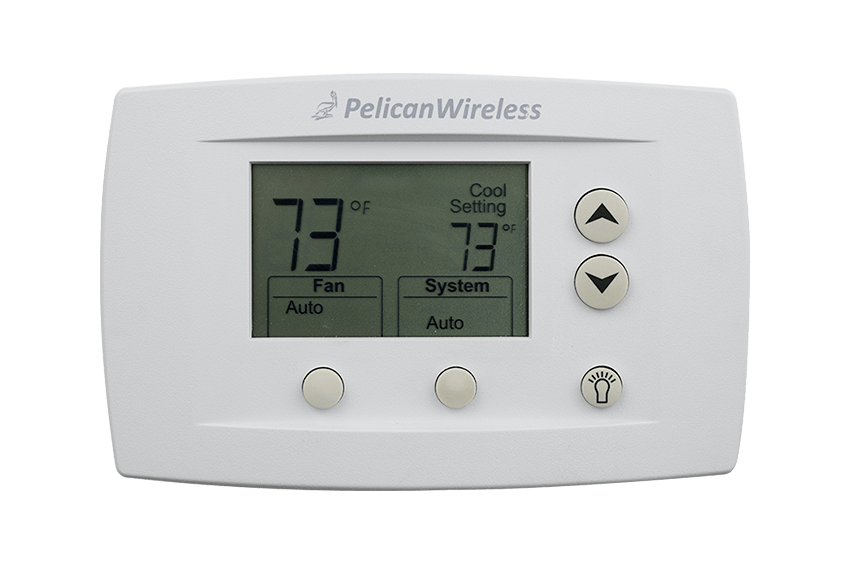

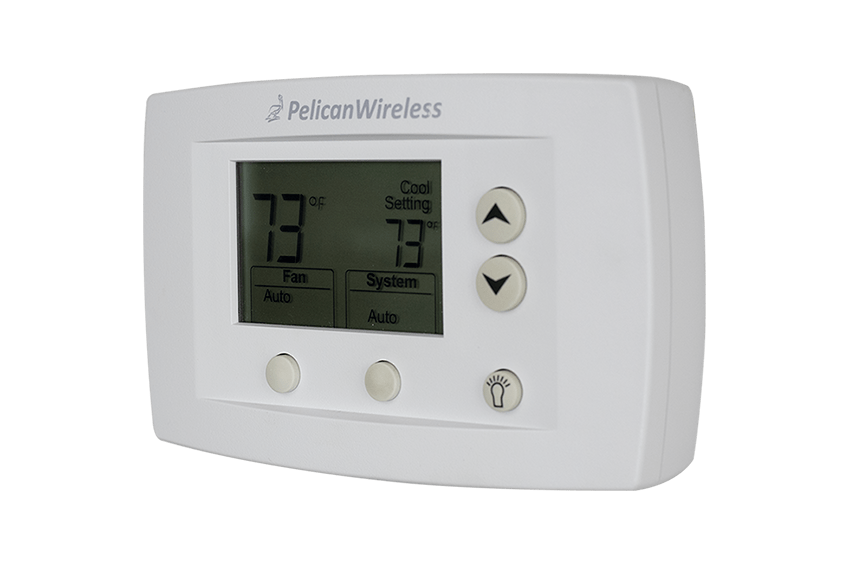

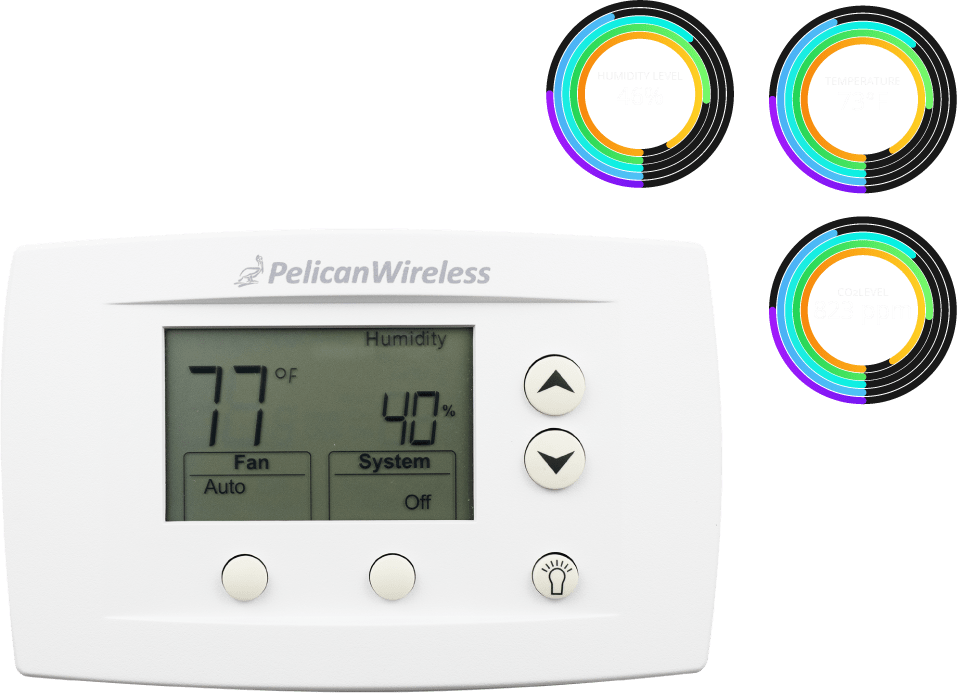

| TS Series: Traditional Commercial Thermostat

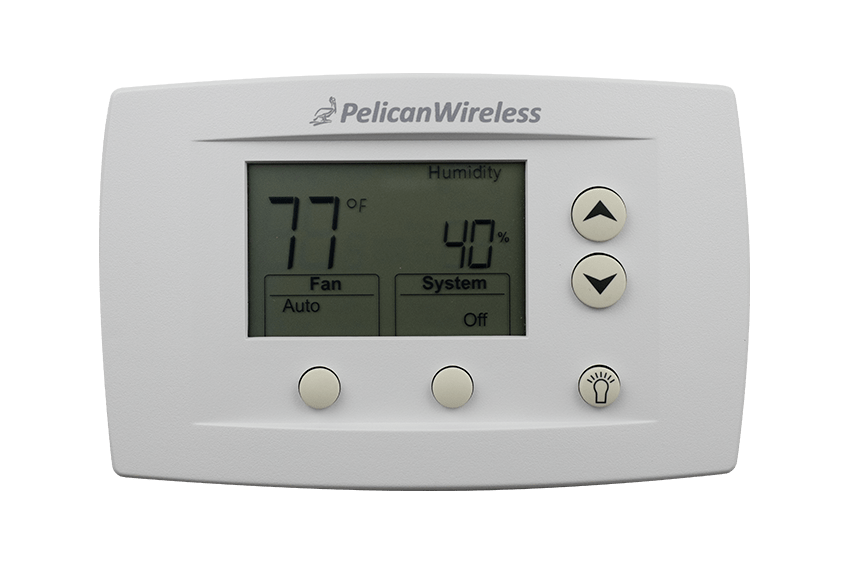

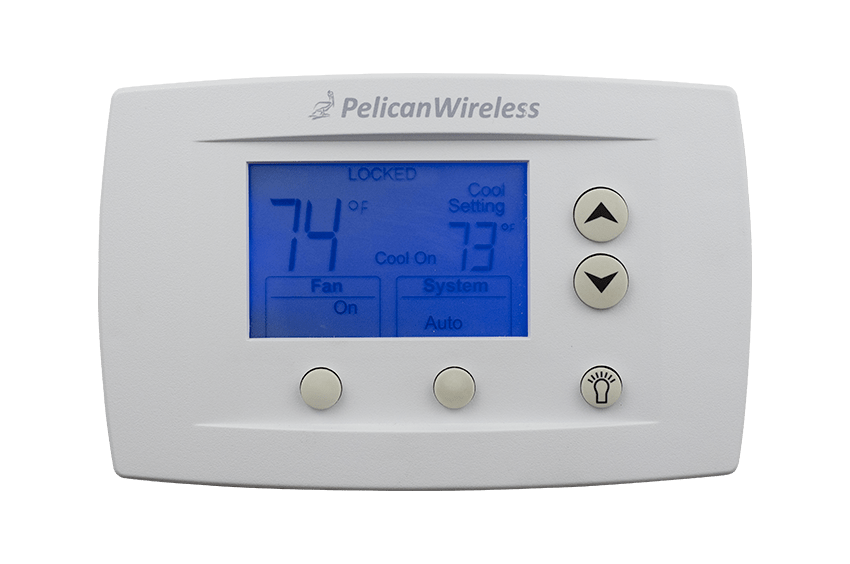

| Easy to read display, with back-lighting.
Our traditional thermostat provides our customers with a friendly easy-to-read display during daytime or night.
| Economical climate management.
Our traditional thermostat allows you to obtain all the features the Pelican Climate Management Solution offers, at an economical price.

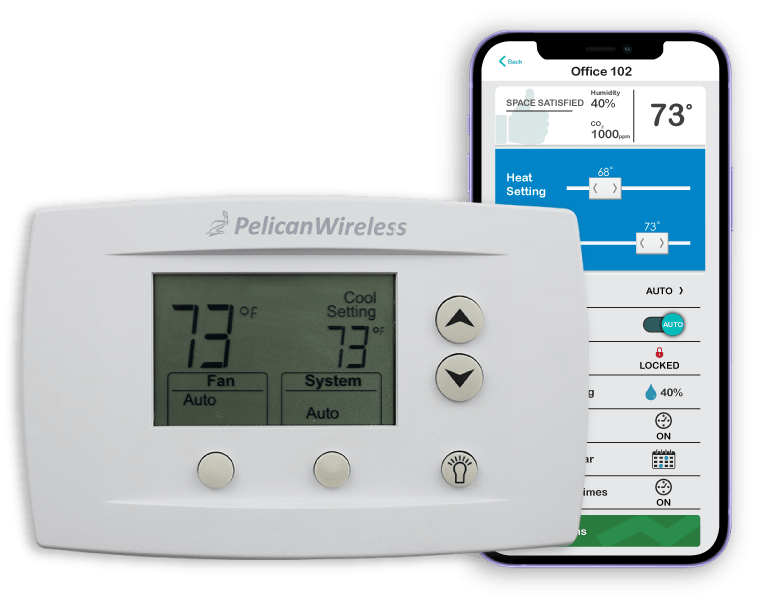

| Web-App control.
With the Pelican Connect™ app you can manage all aspects of the thermostat: schedules, temperature set-points, and more, from any Internet-enabled device. Plus, our thermostats auto-push climate data and advanced equipment failure warning notifications to the app for real-time viewing.

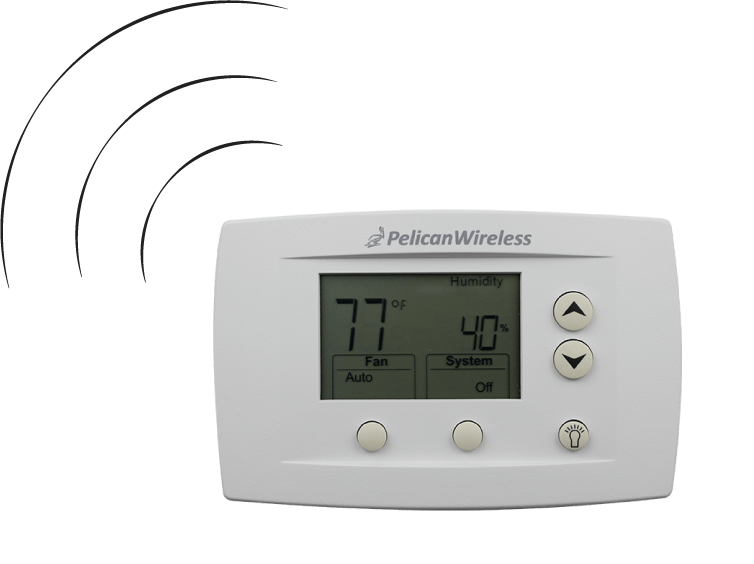

| Automated wireless.
Pelican’s auto-wireless mesh technology makes bridging your Pelican devices to your Pelican Gateway quicker, safer, and more cost effective. Each thermostat auto-connects and extends the wireless mesh for more Pelican devices to connect to the network.

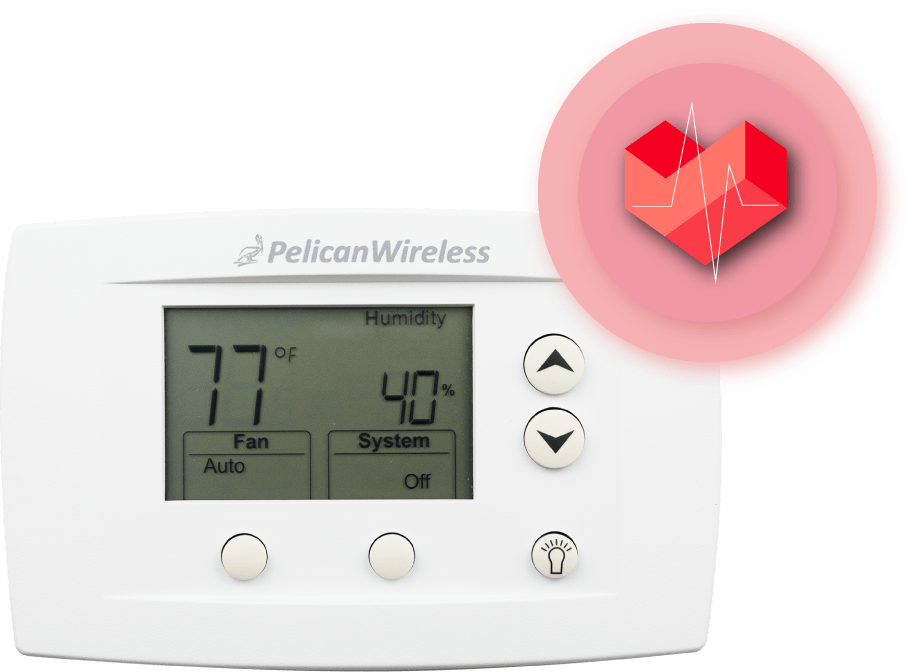

| Indoor comfort.
Utilizing big data analysis, Pelican thermostats automatically adjust how it controls your equipment to maintain your chosen room temperature.

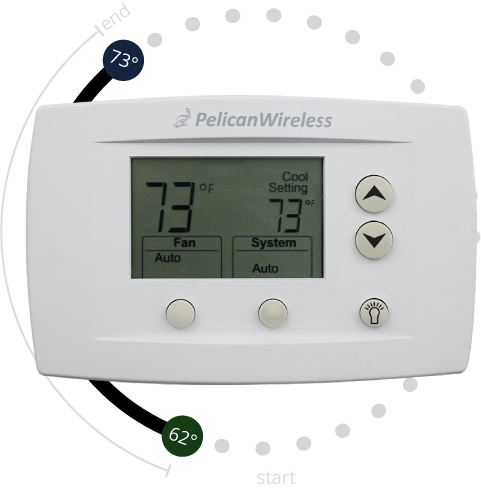

| Optimizedstart.
As occupied hours approach, the thermostat will auto-adjust when to enable your HVAC equipment to bring its room to the right temperature by the time people arrive.

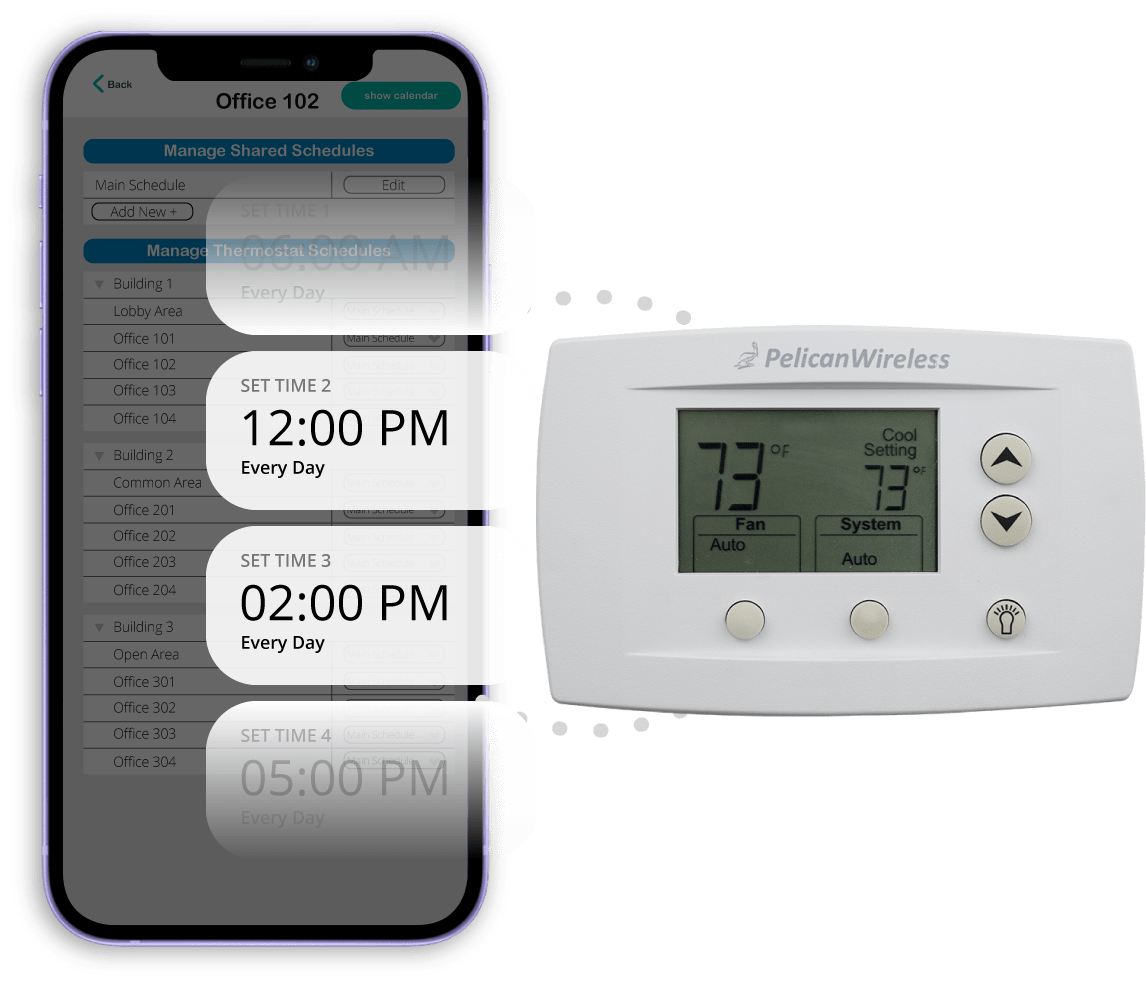

| Schedules under control.
Through your Pelican App, set occupied/unoccupied periods, event schedules, and vacation schedules. All easily tracked so you know all your thermostats are running only when they should be.

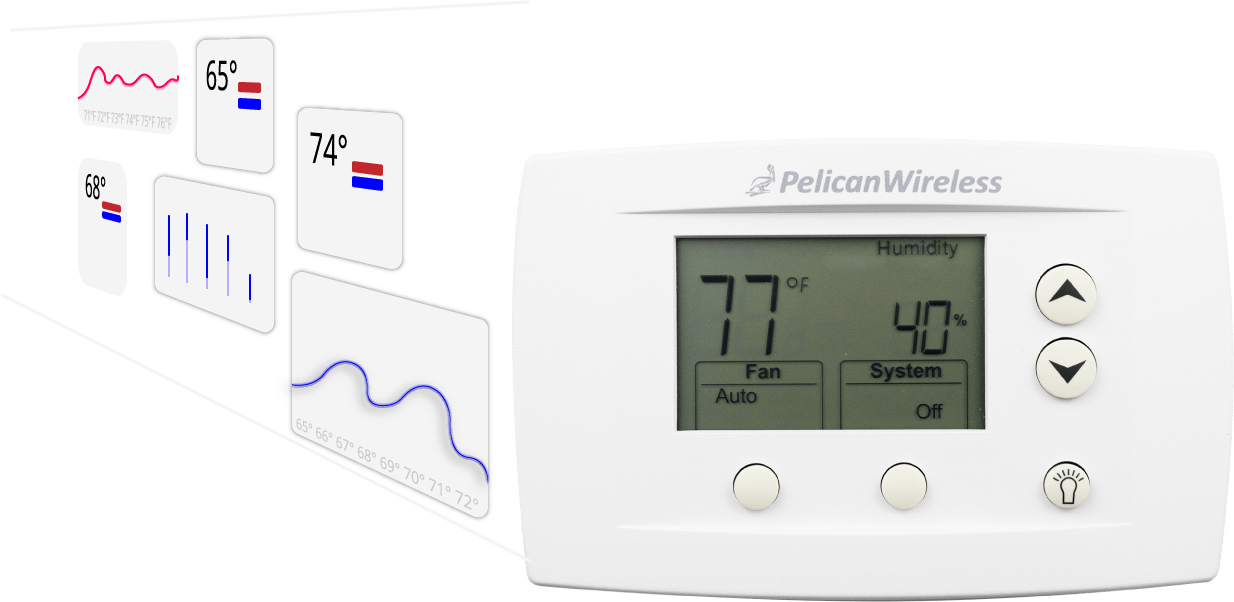

| Datalogs.
Real-time data is continually pushed to your Pelican Connect™ app, so you can see what is currently active and review historical information.
| Self diagnostics.
As the thermostat runs heating, cooling, and/or ventilation, it monitors how its room is operating. If it sees anything abnormal, it generates a notification on your Pelican App.
| Additional Features.
TACTILE BUTTONS:
Familiar Interface
We choose to use traditional push buttons for familiarity and a reduced learning curve.

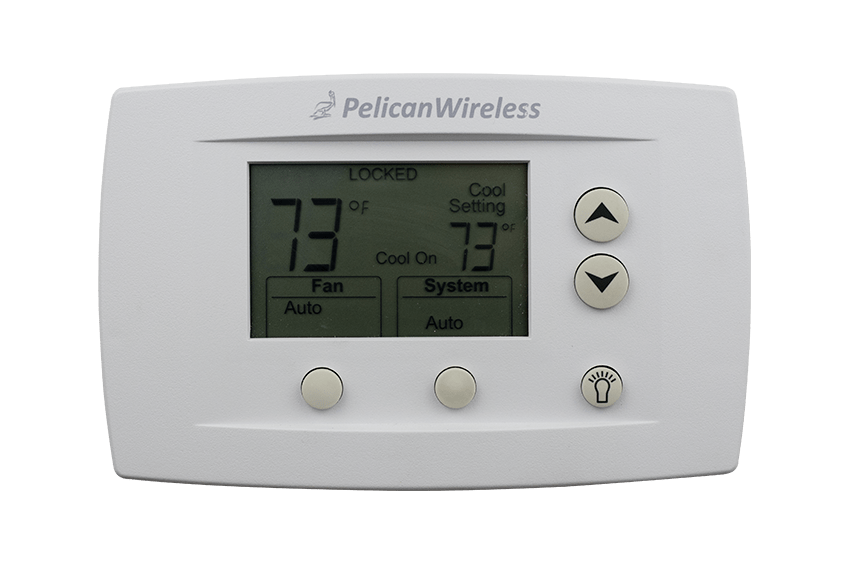

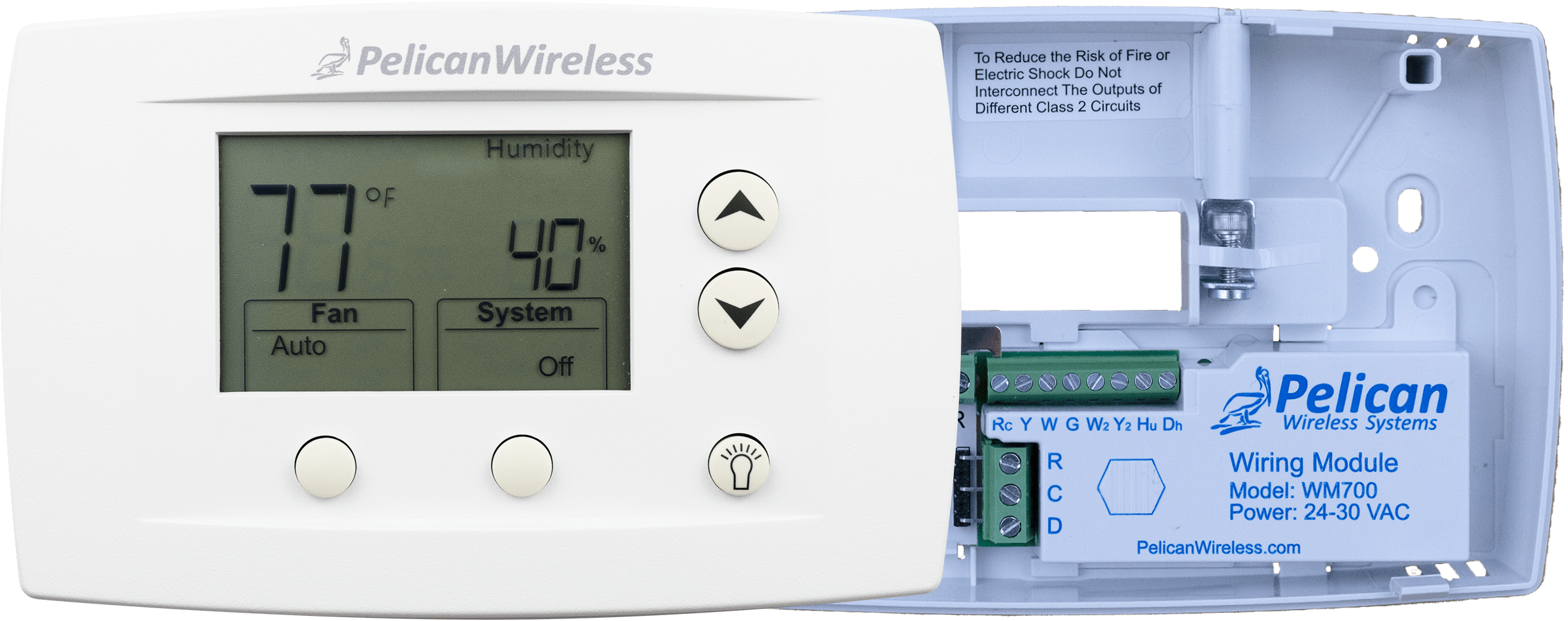

BACKPLATE:
Locking Mechanism
To prevent tampering with the internals of the thermostat, the backplate easily locks into the front display.

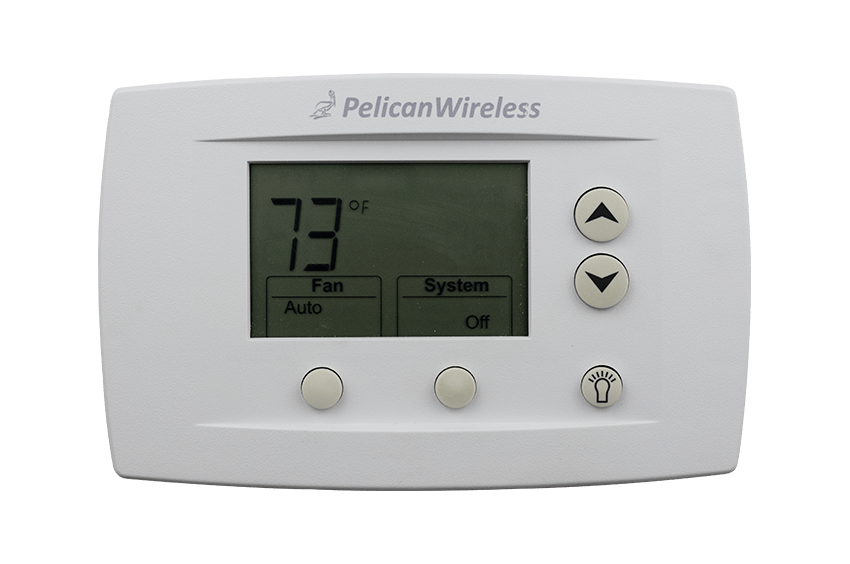

TRADITIONAL INTERFACE:
Readings
Temperature and humidity† are displayed on the main screen. Temperature control is based on an industry standard interface.
†Only available on the TS200H or TS250H thermostats.
3-WIRE:
Limited Wiring Module
If replacing an old thermostat and you have limited wires, no need to run new wires. Just use the provided limited wiring module.
INTEGRATED SENSORS:
All-In-One
The temperature, humidity†, and carbon dioxide‡ sensors are built right into the thermostat.
‡Only available on the TS250 or TS250H thermostats.
| TechnicalSpecifications. (production of this thermostat ended on 03/31/2024, all upgrades and support of these thermostats are provided for free for life. Our 5 year limited warranty will be honored)
MODELS
TS200: Temperature Only TS200H: Temperature & Humidity TS250: Temperature & Carbon Dioxide TS250H: Temperature, Humidity, & Carbon Dioxide
MOUNTING
Designed to be mounted an a horizontal single gang electrical box or on a flat surface.
DIMENSIONS
in: 3.5 X 6 X 1.5 mm: 89 X 150 X 38
POWER
24 VAC, 60 Hz, 50mA
OPERATING VOLTAGE RANGE
23 - 30 VAC
WIRELESS
2.4GHz wireless frequency, IEEE 802.15.4 wireless standard. Complies with Class B Part 15 of FCC rules. Does not interfere or communicate with WiFi/802.11 networks. Pelican Mesh Network Enabled.
TEMPERATURE DEADBAND
3°F setting, auto-adjusting to 5°F.
OPERATING RANGE
-4°F to 122°F 5% to 90 % Relative Humidity (non-condensing)
RELAY CURRENT RATING
2.0A running (Y, Y2, W, W2, G) 1.0A running (Dh & Hu) (TS200H & TS250H)
HUMIDITY SENSOR (TS200H & TS250H)
Humidify setting: 10 - 80% RH Dehumidify setting: 20 - 90 RH
CARBON DIOXIDE SENSOR (TS250 & TS250H)
400 - 2000 PPM detection range. +/- 50 PPM accuracy @ 600 PPM and 1000 PPM, auto-calibrating.
STORAGE
-20°F to 160°F
SCHEDULES
Daily, 5-2, and 7 Day Occupied/Unoccupied Schedule. Up to 12 set times per day. Optimum Start. 365-day vacation calendar. Vacation mode button. Event calendar. Enforced fan circulation. Occupied/Unoccupied Ventilation (accessory required). Occupied/Unoccupied Sensor Setback Schedule (accessory required).
SYSTEM PROTECTIONS
Tamper proof security screw. Four minute short cycle timer. Temporary schedule override allowance. Schedulable keypad lockout. 365-day vacation calendar. Limit heat and cool set-point ranges. Auto-adjusting 5°F heat and cool dead-band. Humidity dead-band protections (TS200H & TS250H). Auto fan enable on high carbon dioxide reading (TS250 & TS250H).
ALERTS AND NOTIFICATIONS
Analytics based cool and heat failure notification. Temperature safe range notification. Unable to find wireless network notification. Unable to connect to cloud server notification. Unreachable device notification. Humidity safe range detection notification (TS200H & TS250H). High carbon dioxide detection notification (TS250 & TS250H). Dry-contact input to notification (accessory required). Supply air temperature out-of-range (accessory required). Economizer fault detection and diagnostics (accessory required). Utility event active notification.
Designed to be mounted an a horizontal single gang electrical box or on a flat surface.
TS200: Temperature Only
TS200H: Temperature & Humidity
TS250: Temperature & Carbon Dioxide
TS250H: Temperature, Humidity, & Carbon Dioxide
HUMIDITY SENSOR (T200H & TS250H)
-20°F to 160°F
Analytics based cool and heat failure notification. Temperature safe range notification. Unable to find wireless network notification. Unable to connect to cloud server notification. Unreachable device notification. Humidity safe range detection notification (TS200 & TS250H). High carbon dioxide detection notification (TS250 & TS250H). Dry-contact input to notification (accessory required). Supply air temperature out-of-range (accessory required). Economizer fault detection and diagnostics (accessory required). Utility event active notification.
| ProductDocumentation.
Installation Guides
> PDF: TS200 Installation Guide
> PDF: TS200H Installation Guide
> PDF: TS250 Installation Guide
> PDF: TS250H Installation Guide
Datasheets
Application/Engineering Guides
> PDF: Wireless Network and Installation Planning Guide
> PDF: Section 23 09 22: Climate Management Controls for HVAC
> DOC: Section 23 09 22: Climate Management Controls for HVAC
Security & Wireless Documents
> PDF: Wireless Communication Frequency
Thermostat Accessories
Vanity Plate
TS-VANITY
External Input
Advanced Controller
Proximity Sensor
Add CO2 Sensor
Wireless Sensors

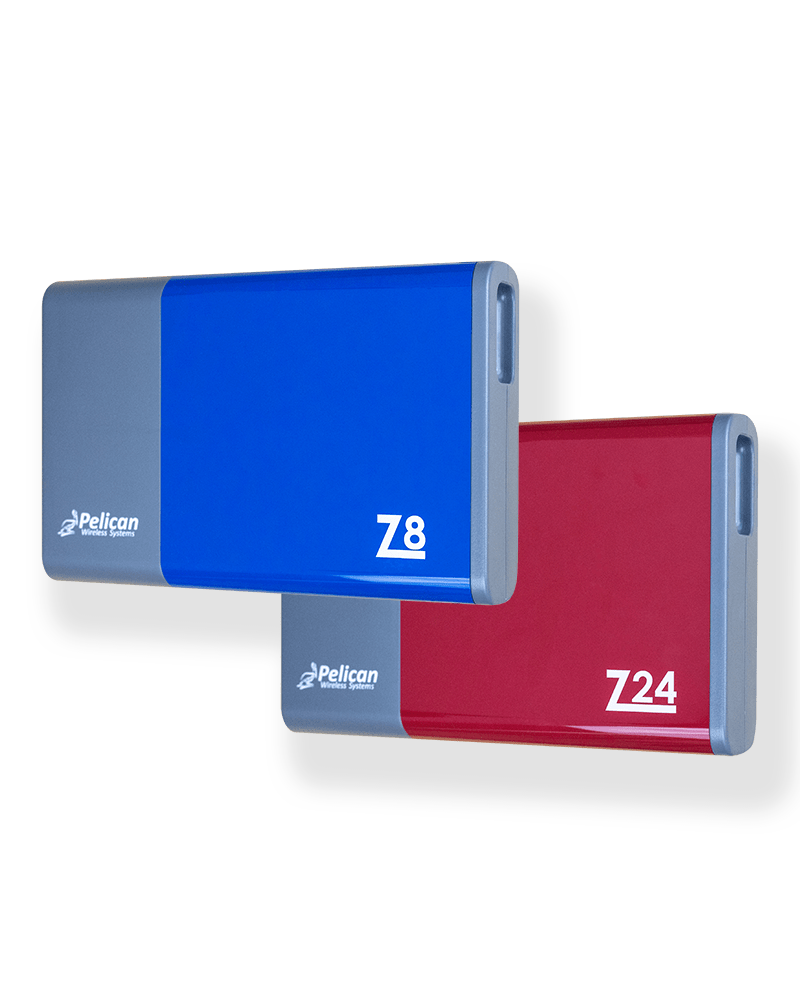

Zone Coordinator
